Fig. 10.
Download original image

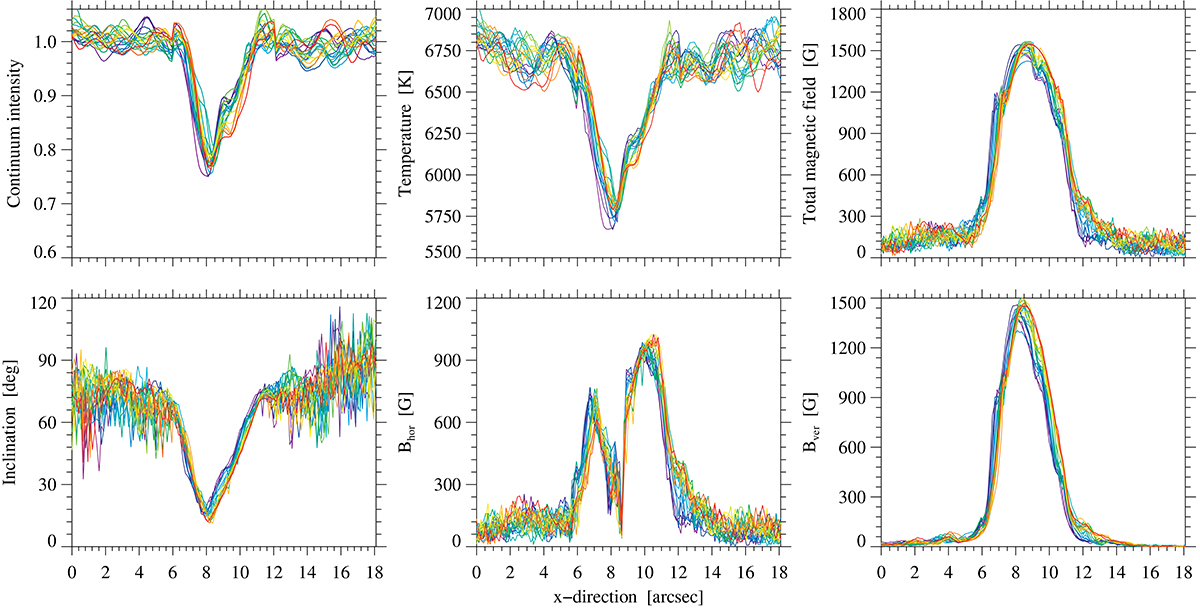

Physical parameters estimated in the Ca I line: intensity, temperature, total magnetic field strength, inclination, horizontal magnetic field, and vertical magnetic field (top-left to bottom-right) for 20 scans on 29 May along the cutout in x-direction as marked in Fig. 7. The rainbow colors indicate the 20 scans with increasing order in time from blue to red.
