Fig. 8.
Download original image

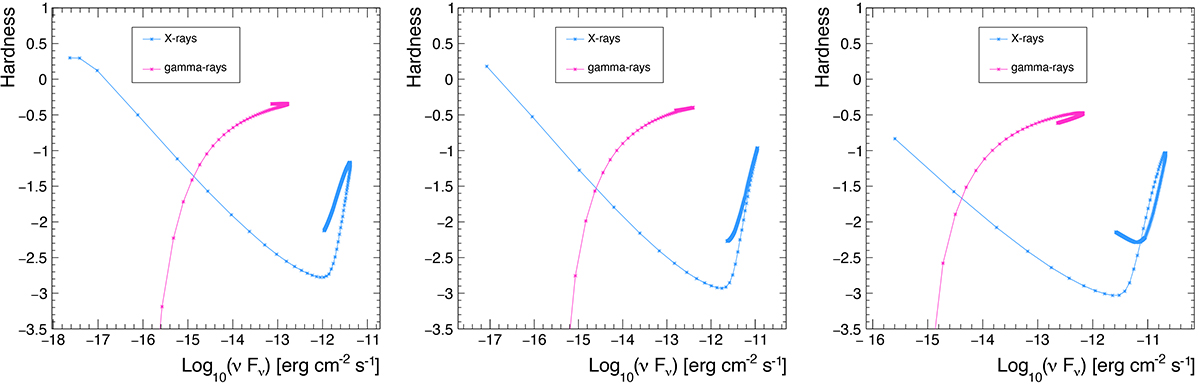

Hardness-intensity diagrams (HIDs) highlighting hysteresis patterns for X-ray (blue) and gamma-ray (magenta) domains for intrinsic effects only, namely for the three cases with τ = 0 shown in Fig. 7. Left: increasing trend, anticlockwise hysteresis loop at high fluxes. Centre: flat trend, almost no hysteresis. Right: decreasing trend, clockwise hysteresis loop at high fluxes.
