Fig. 5


Download original image

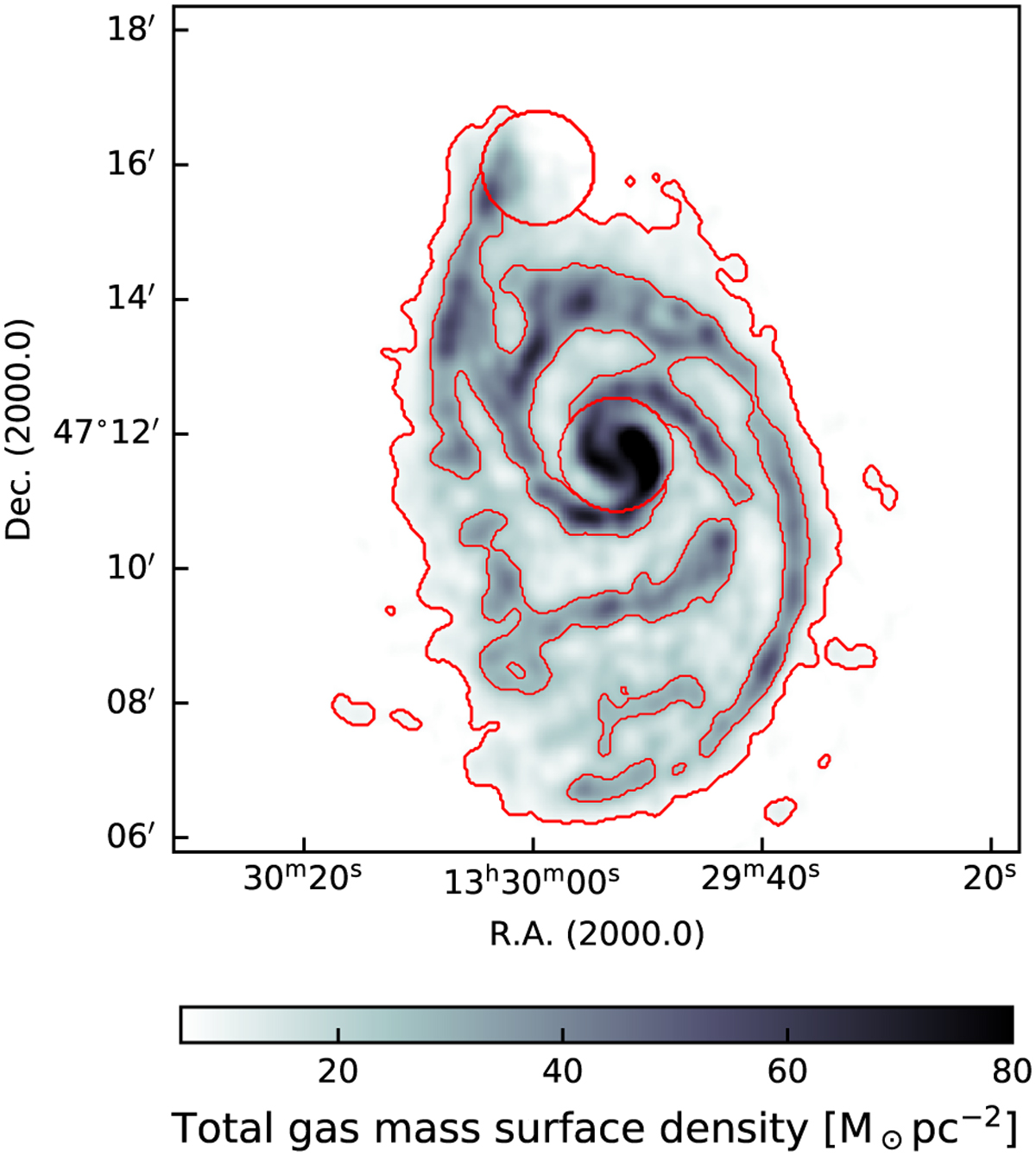

Total gas-mass surface density as derived from a combination of atomic (HI) and molecular (H2) gas maps. The contours at 8 and 25 M pc~2 define the borders of the spiral arm and inter-arm regions, respectively. The circular apertures denote the core regions in M 51 and NGC 5195.
