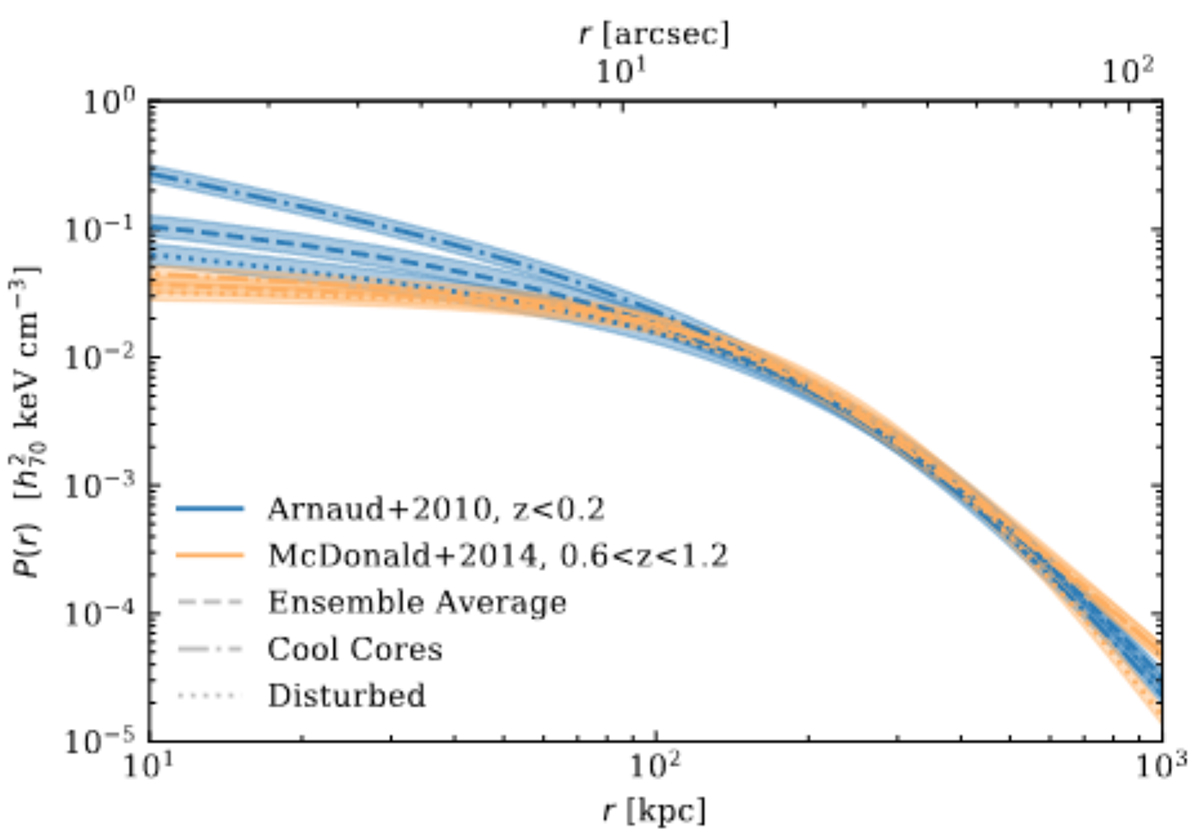

Fig. 7.

Download original image
Derived radial pressure profiles of the best-fit elliptical models which follow the empirical formalism as shown in Table 1. The shape parameters of the A10-model parameters are frozen and set to the six classifications of Arnaud et al. (2010) and McDonald et al. (2014). The uncertainties are derived from the 0.16–0.84 quantiles of the sampled posterior distribution’s mass (amplitude) parameter. The uncertainties are thus marginalized over the centroid position, eccentricity, redshift, and calibration uncertainties. These profiles are the image plane variants (Fourier transforms) of the ones shown in Figure 6.
