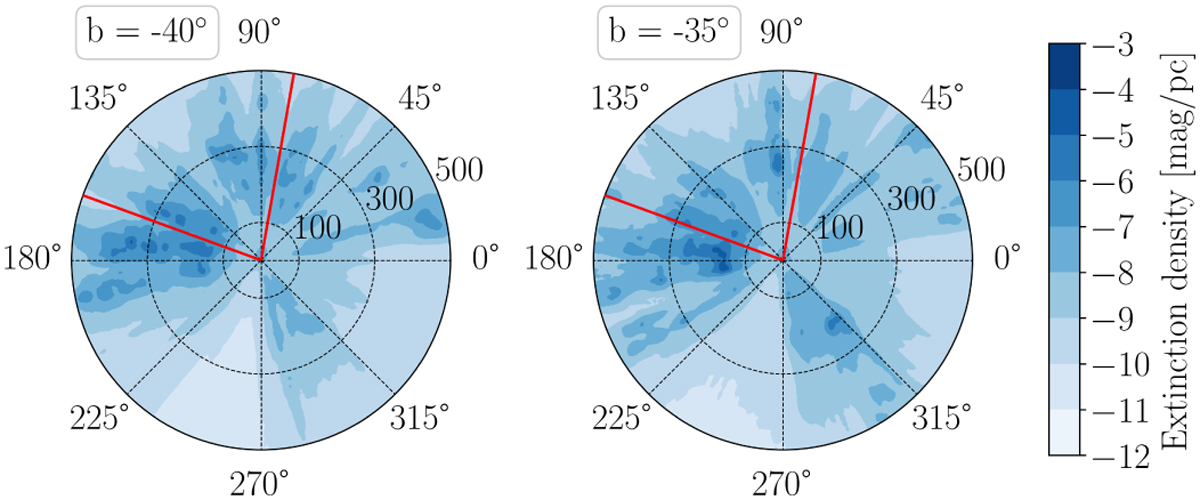

Dust extinction at different Galactic latitudes, made with data of Vergely et al. (2022). In each panel, the Sun is in the centre and the circular maps represent a 2D projection of a conical cross-section along a constant Galactic latitude (corresponding to geometry of a martini glass). Galactic longitudes are denoted on the angular coordinate and the distance to the Sun is the radial coordinate. The two red lines bound the area covered by the mosaic.
