Fig. 8

Download original image

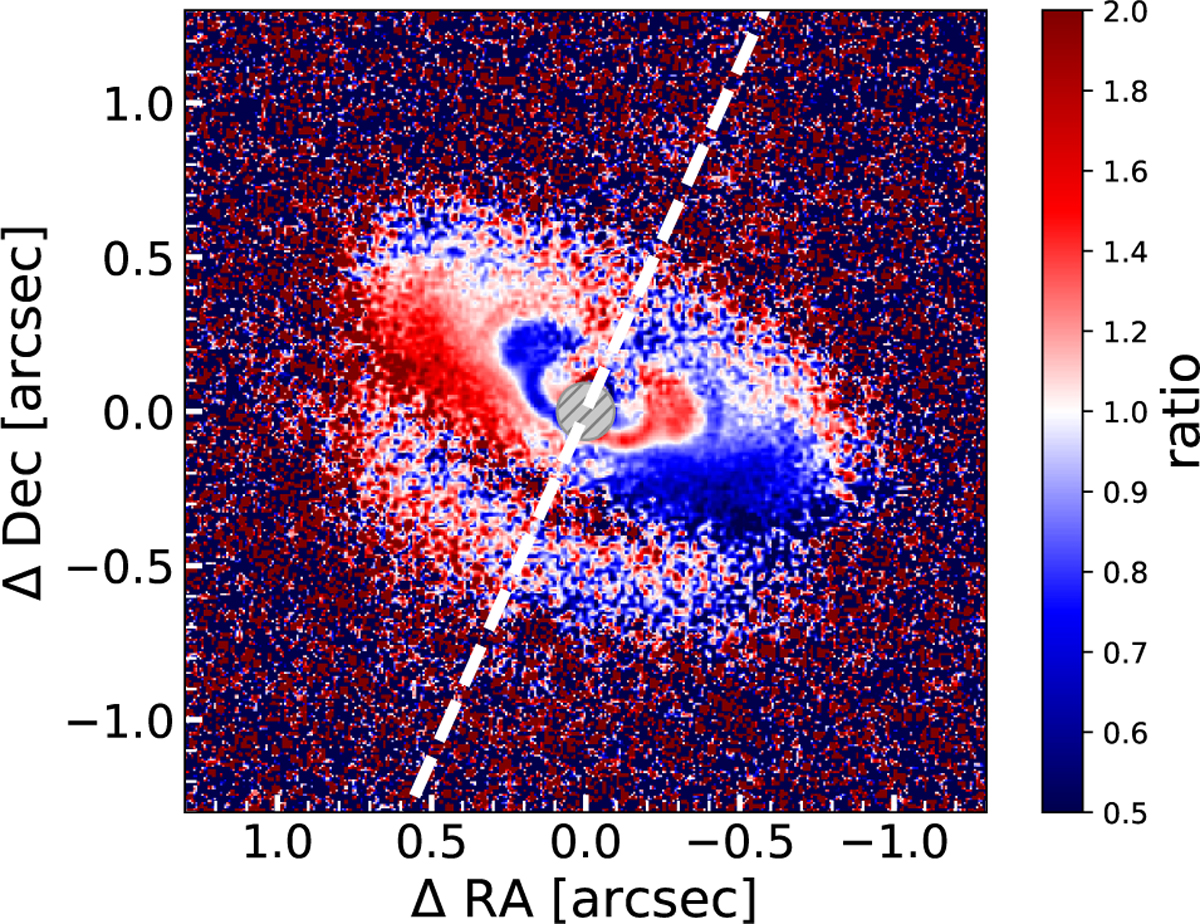

Scattered light disk flipped around the minor axis and divided. The minor axis is indicated by the white, dashed line. The scattered light disk is asymmetric relative to the minor axis. The colorbar gives the flux ratio between the two sides of the disk, showing that the flux deviates up to a factor of two between both sides. Notably, the flux ratio turns around for the region inside of ~0.3″ along the major axis. This may indicate a local change in scale height symmetric around the disk midplane rather than a warp or misalignment since the bottom side displays a similar flux ratio.
