Fig. 4.


Download original image

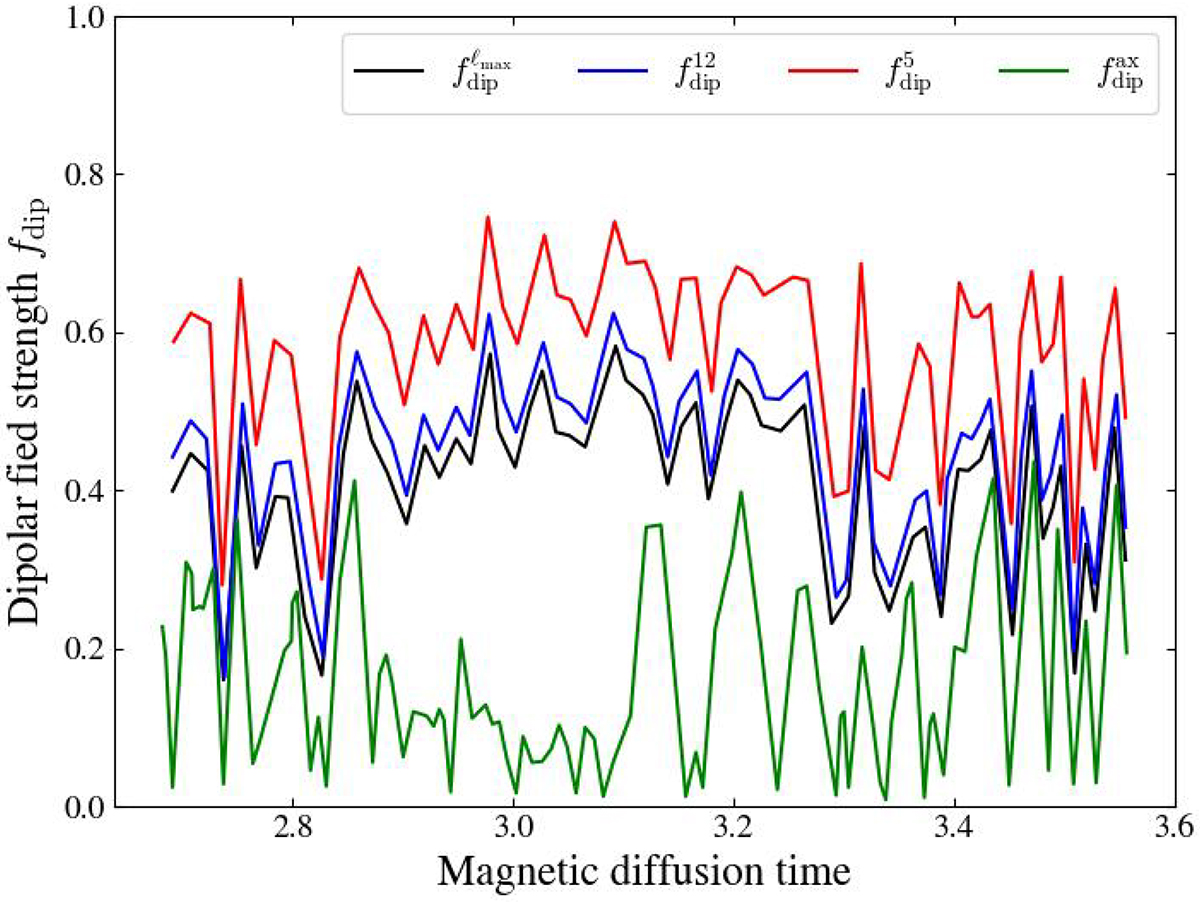

Same as in Fig. 3, but for the equatorial dipole considered in Fig. 1b, with E = 3 × 10−5, Pr = 1, Nρ = 3, Ra = 2.48 Rac, and Pm = 2. The relative contribution of the axial dipole alone (m = 0) for the cut-off degrees ℓcut = ℓmax, denoted with f dip ax $ f_{\mathrm{dip}}^{\mathrm{ax}} $, is also represented in green.
