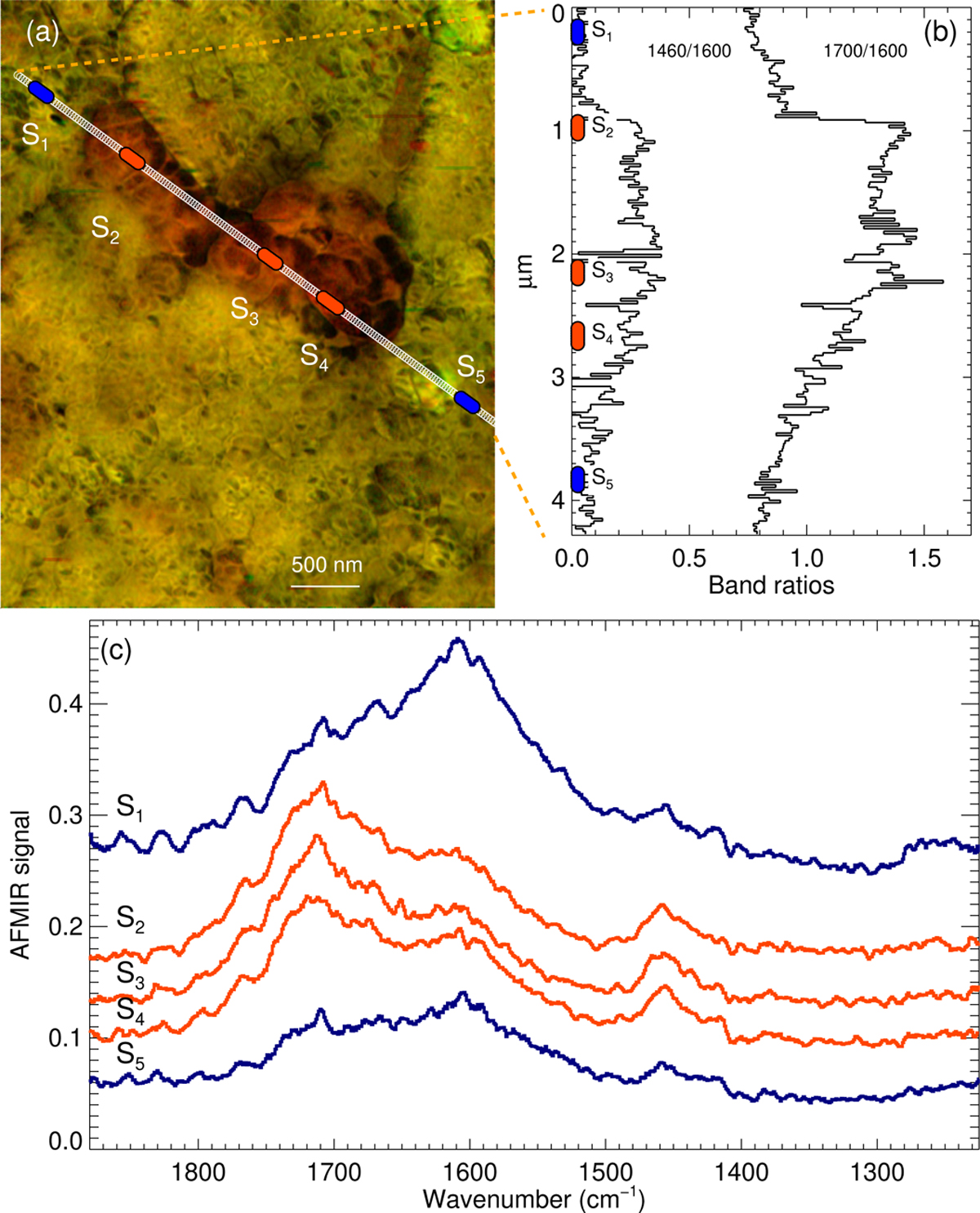

Fig. 8

Download original image
Ryugu IOM sample C0107-IOM residue_16-B. Zoom-in on the organic nanoparticles identified in situ in Fig. 7. (a) RGB image of the region including the organic nanoparticles (C=O at 1720 cm−1 in red, C=C at 1600 cm−1 in green, CHX 1460 cm−1 minus 1520 cm−1 in blue). The white line shows the location of individual AFM-IR spectra taken across the organic nanoparticles. The colored dots (S1 to S5) correspond to average spectra taken on each side (S1 and S5 in blue) and on the organic nanoparticles (S2 to S4 in red), (b) Intensity ratios of frequencies corresponding to CHX/C=C (1460/1600) and C=O/C=C (1700/1600) along the white line shown in (a). The location of the S1 to S5 spectra is recalled on the left axis, (c) Average AFM-IR spectra on each side (blue, S1 and S5) and on the organic nanoparticle (red, S2 to S4).
