Fig. 2


Download original image

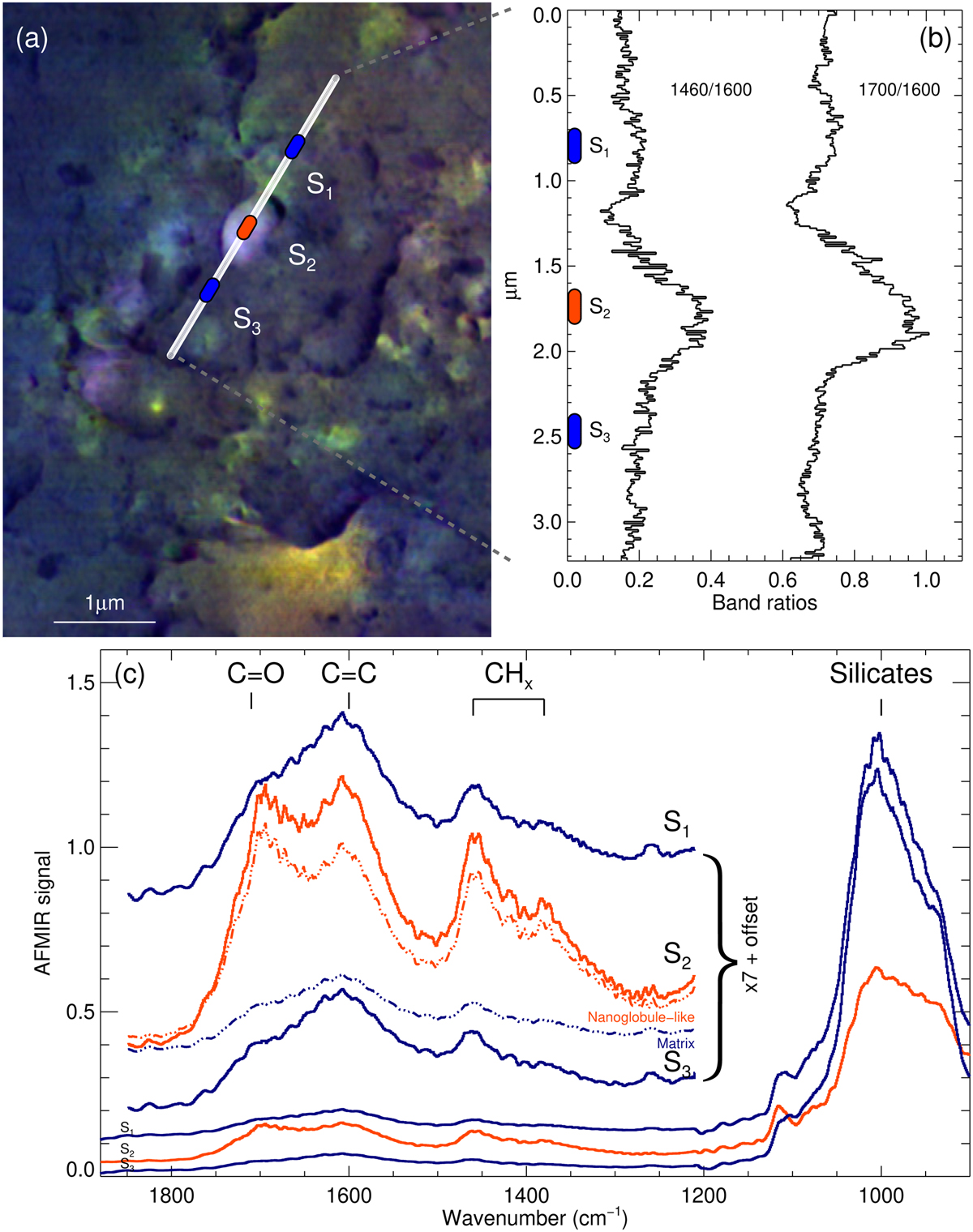

Ryugu sample A0108-19 whole-rock, zoom-in on a region including the nanoglobule-like organic particle identified in situ in Fig. 1. (a) RGB image of the region including the organic nanoparticle (C=O at 1720 cm−1 in red, C=C at 1600 cm−1 in green, CHX 1460 cm−1 minus 1520 cm−1 in blue). The white line shows the location of individual AFM-IR spectra taken across the nanoglobule-like feature. The colored dots (S1 to S3) correspond to average spectra taken on each side (S1 and S3 in blue) and on the nanoglobule-like feature (S2 in red). (b) Intensity ratios of frequencies corresponding to CHX/C=C (1460 cm−1/1600 cm−1) and C=O/C=C (1700 cm−1/1600 cm−1) along the white line shown in (a). The location of the S1 to S3 spectra is recalled on the left axis. (c) Average spectra on each side (blue, S1, and S3) and on the nanoglobule-like feature (red, S2). The red dot-dashed line spectrum labelled “Nanoglobule-like” was obtained by scaling the average of S1 and S3 spectra to the same silicate band contribution, as in the S2 spectra, and by subtracting this scaled spectrum from S2. The resulting “Nanoglobule-like” spectrum is thus freed from the matrix contribution underneath the globule. The nanoglobule-like spectrum shows an elevated CHX signal (intense methyl and methylene deformation modes at ~1460 cm−1 and ~1370 cm−1) as well as a high carbonyl contribution around 1700 cm−1. The blue dot-dashed line spectrum labelled “Matrix” corresponds to the expected contribution from the matrix for a probe depth equivalent to the nanoglobule-like spectrum.
