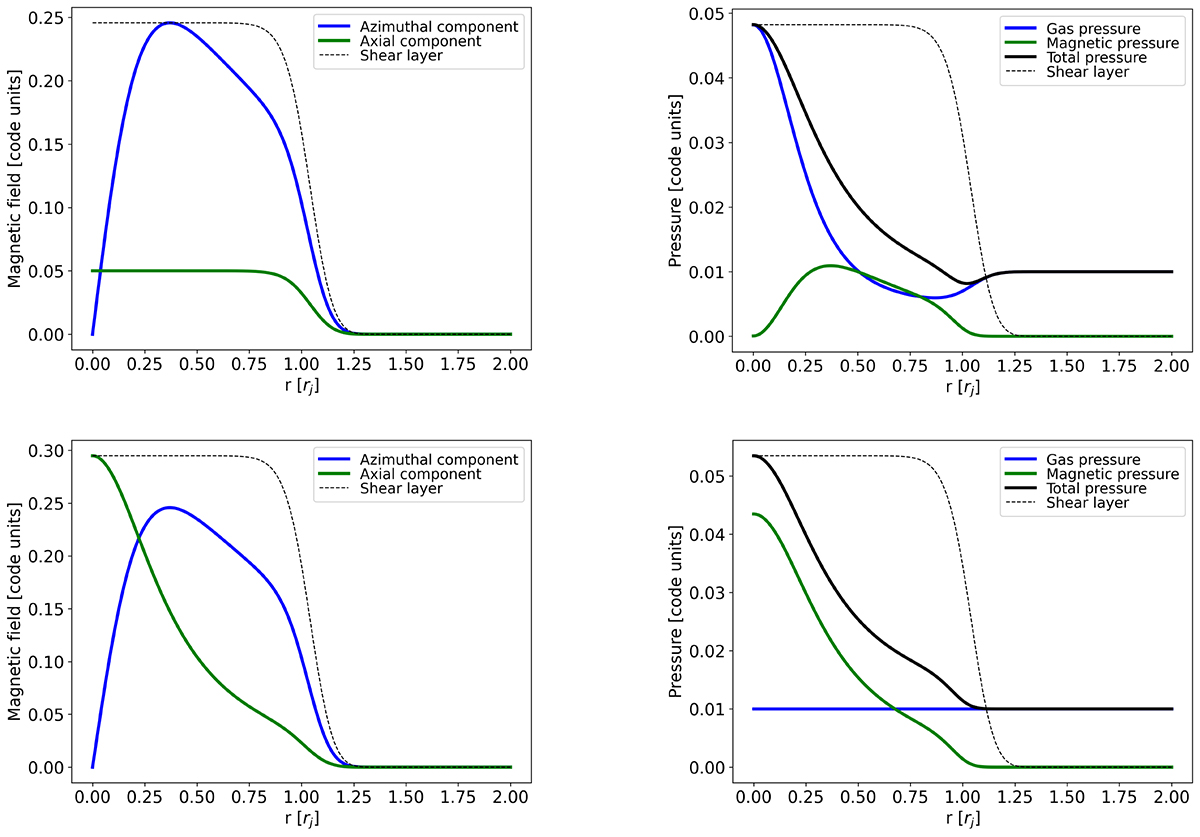

Initial profiles along the radial distance in the different magnetic field configurations. We use the representative values of B^ϕ = 0.24, R_m = 0.37, v_j = 0.8, p_a = 0.01, and B^z = 0.05 (for the nonforce-free configuration) in code units. Upper panels: nonforce-free configuration. Lower panel: force-free configurations. Left panels: Magnetic field distribution of the azimuthal (blue line) and axial (green line) components. Right panels: profile distribution of the gas pressure (blue line), magnetic pressure (green line), and total pressure (black line). The dotted black line indicates the shear layer with m = 8 normalized at the higher value in the plot for an easier representation.
