Fig. 1

Download original image

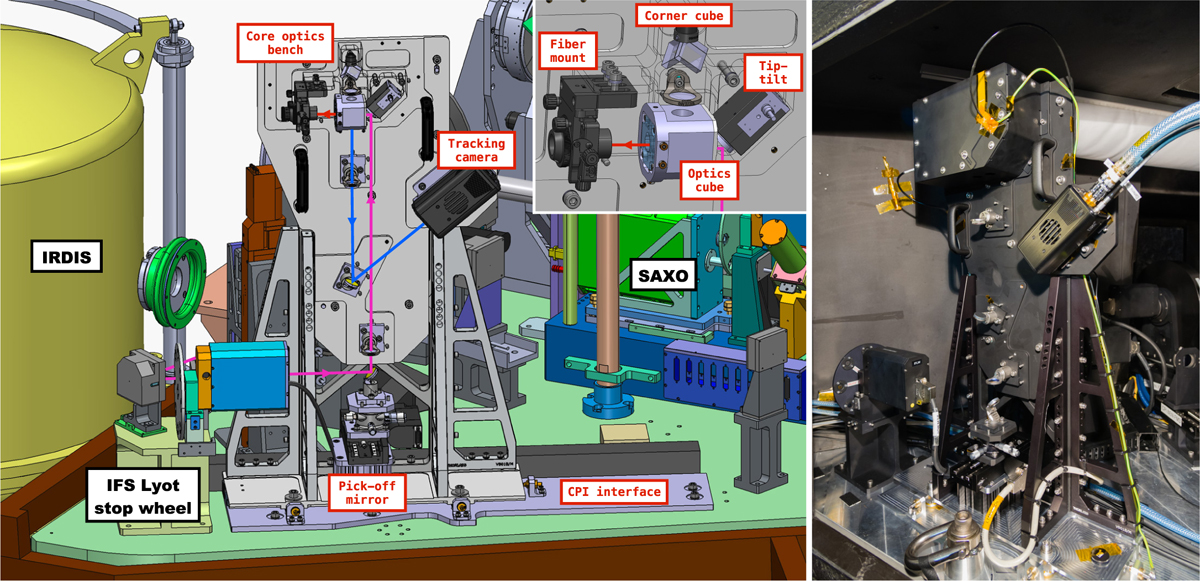

Implementation of the FIM inside the IFS arm of SPHERE. On the left drawing, the SPHERE components are labeled in black, while the FIM components are labeled in red. The inset in the top right shows the components of the core optics bench. The light path is illustrated on the drawing in purple for YJH, blue for YJ, and red for H (see also Vigan et al. 2022b, their Fig. 3). The picture on the right shows the FIM at the end of the installation in SPHERE. The IFS Lyot wheel is visible in the bottom left of the picture.
