Fig. 2.


Download original image

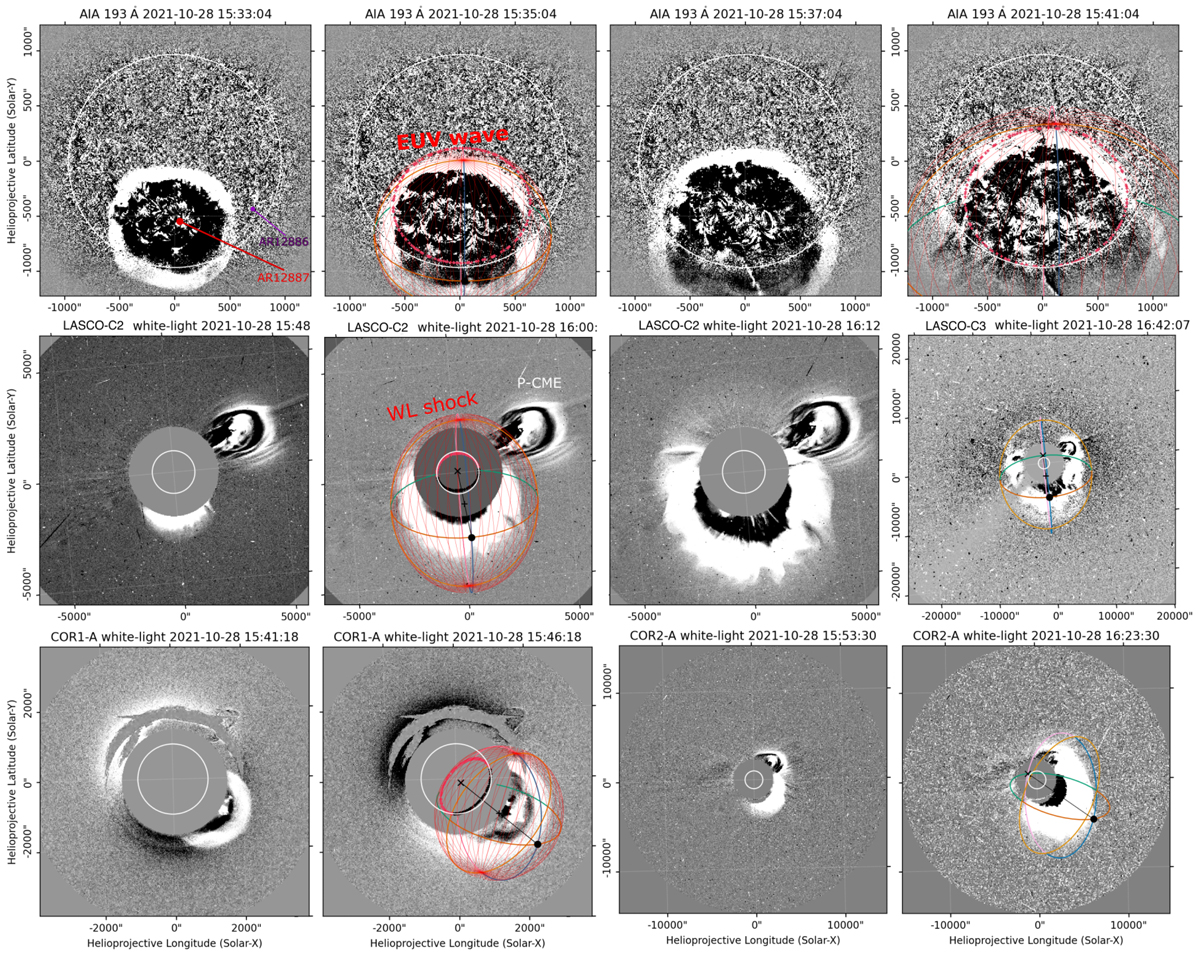

Selected snapshots of EUV and WL coronagraphic observations during the 28 October 2021 solar event. The top row shows running-difference images from SDO/AIA at 193 Å, the middle and bottom rows show coronagraphic running-difference images from SOHO/LASCO and STEREO-A, respectively. The EUV wave, the CME, and the WL shock is clearly visible in these panels and they are labelled in some frames. A narrow streamer blowout CME above the west limb is also shown, labelled “P-CME”. The ellipsoid fitted to the shock front during the 3D shock reconstruction is over-plotted to selected frames.
