Fig. 7

Download original image

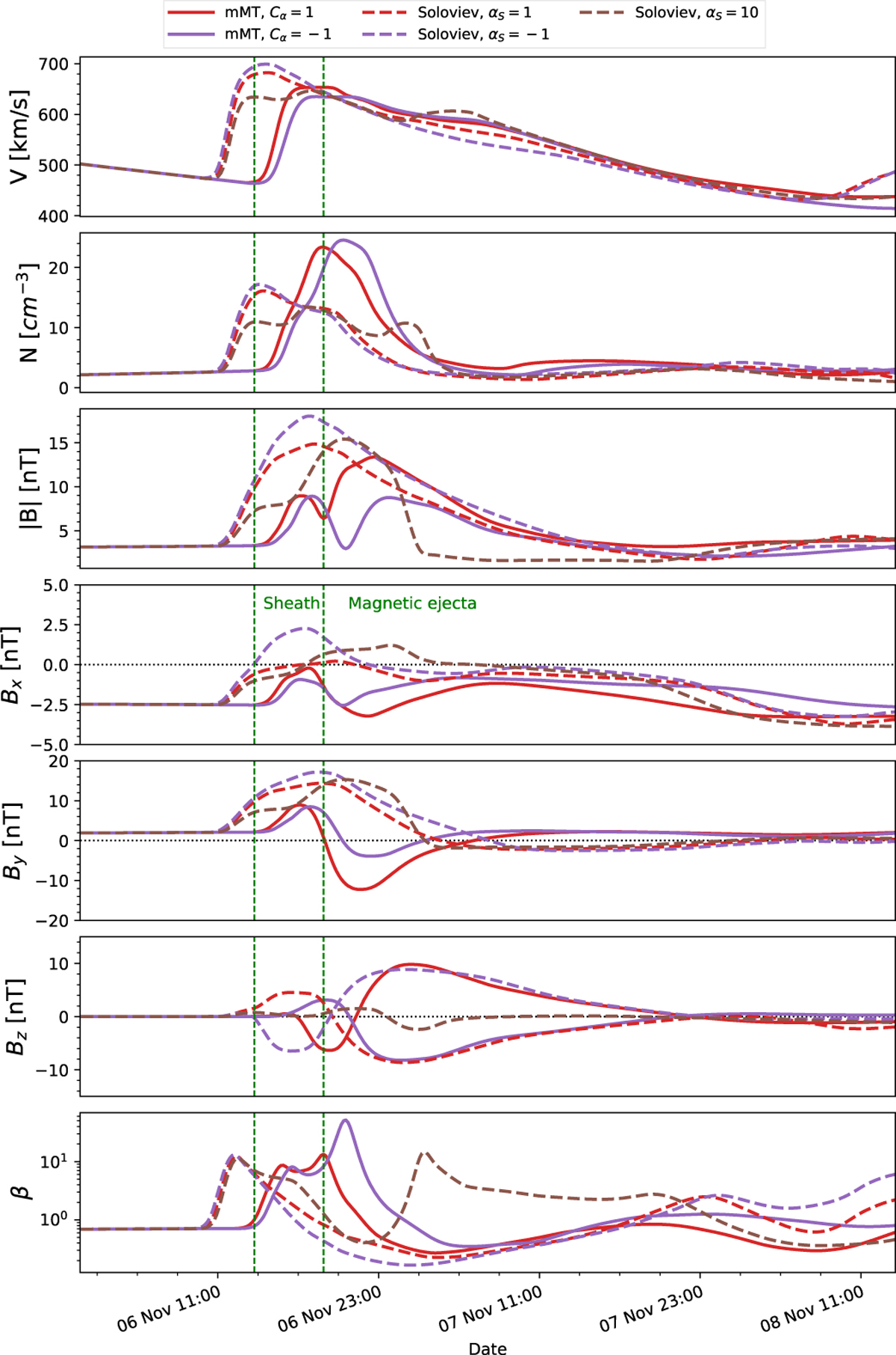

Magnetic and thermodynamic profiles as function of time obtained at Earth using EUHFORIA with the two CME models. Top to bottom: speed, density, total magnetic field strength, Bx, By, Bɀ components in GSE coordinates, and plasma beta (β in log scale). The solid lines correspond to simulations where the CME is based on the mMT solution, while the dashed lines are obtained from simulations with the Soloviev solution as CME model. The green vertical lines mark the presumed sheath boundaries in the mMT simulation with Cα = 1.
