Fig. 5.
Download original image

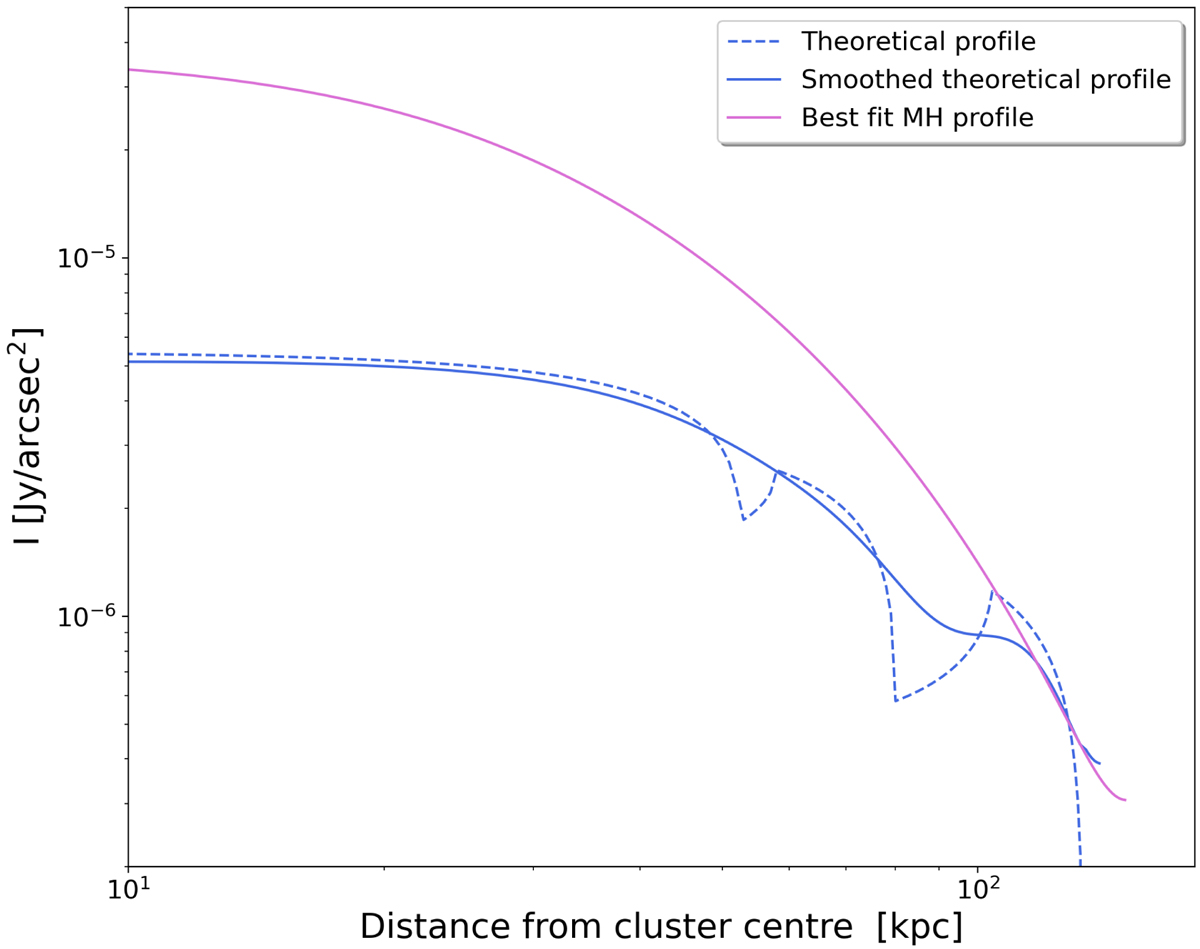

Best fit mini halo profile and theoretical profile computed considering the re-acceleration from the three shock waves. Blue dotted line is the theoretical shock profile, blue continuous line is the theoretical shock profile after smoothing to mimic the effect of beam convolution, rose line is the best-fit profile obtained with HALO_FDCA on VLA data at 1.425 GHz.
