Fig. 19
Download original image

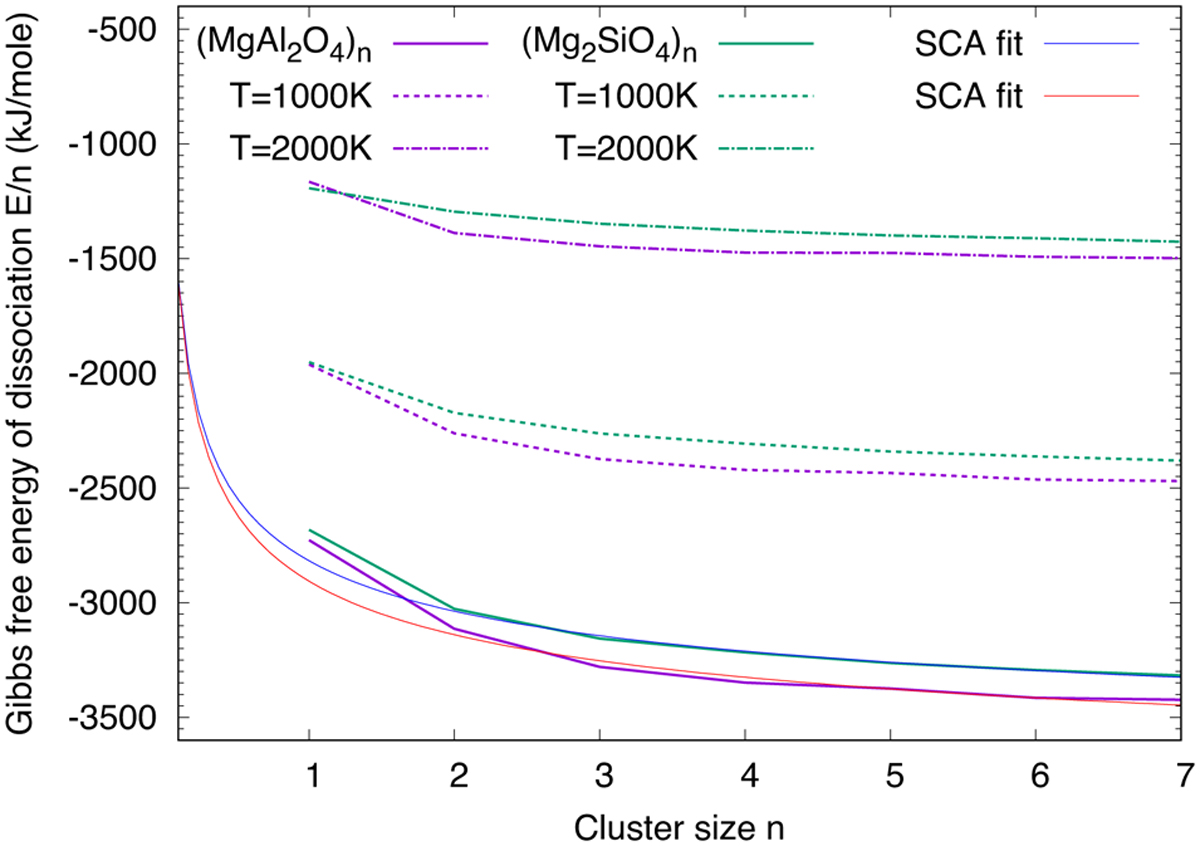

Normalised Gibbs free energies of dissociation for the stoichiometric spinel GM clusters, (MgAl2O4)n, as a function of cluster size, n, for different temperatures of T = 0 K (solid line), T = 1000 K (dashed line), and T = 2000 K (dash-dotted line). For comparison, the Mg-rich olivine GM candidate clusters, (Mg2SiO4)n, as found in Escatllar et al. (2019), and their free energies are also included.
