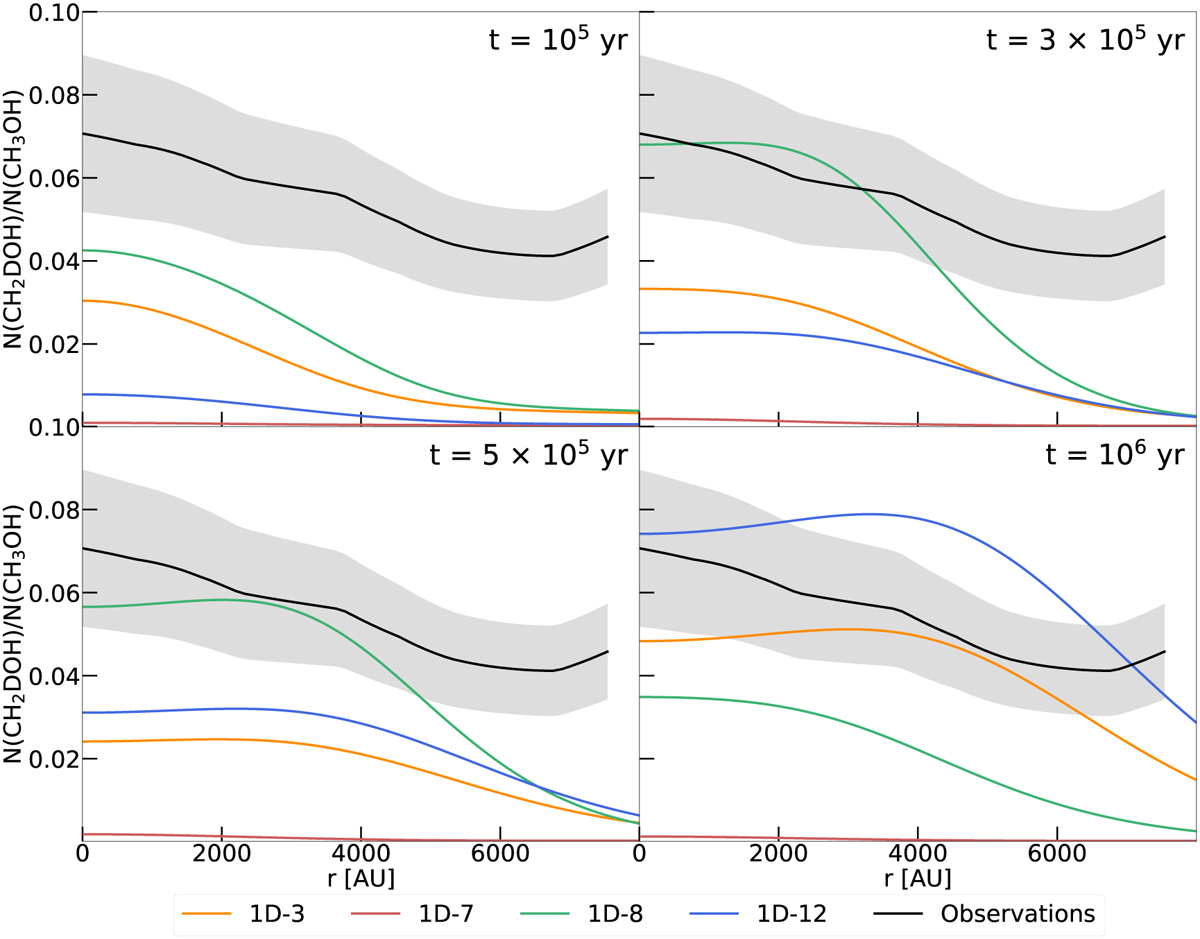

Modelled ratio between singly deuterated methanol (CH2DOH) and non-deuterated methanol (CH3OH) for several models at four different time steps ranging from 105 yr to 106 yr. We present the varied models that show the largest effects in terms of the amount of methanol in the gas phase: 1D-7 (two-phase model), 1D-8 (only reactive desorption with one product), and 1D-12 (location-dependent cosmic-ray ionisation rate). The black line shows the observed ratio (errors as grey-shaded areas).
