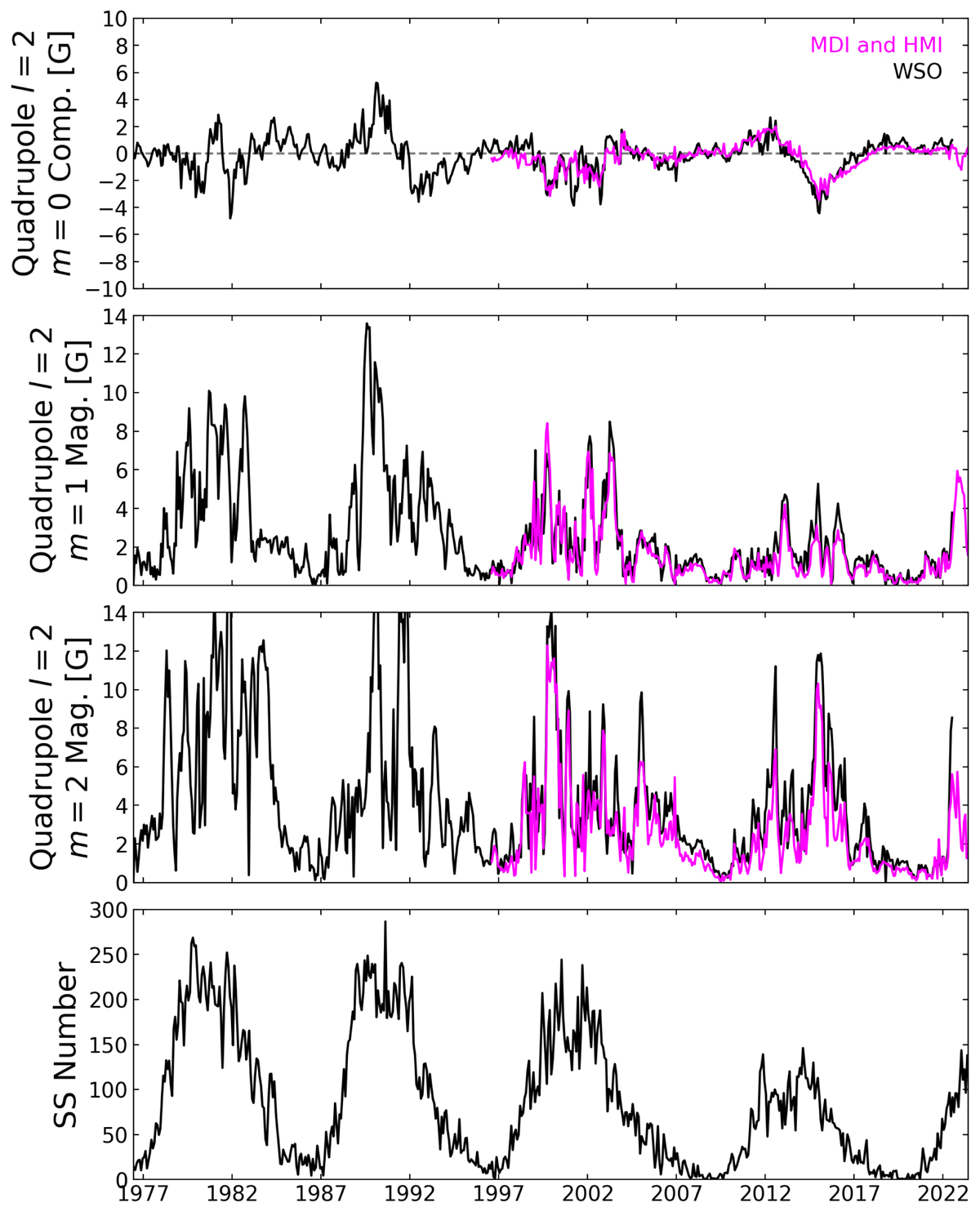

Fig. B.2.

Download original image
Evolution of the quadrupole (l = 2) mode of the Sun’s radial magnetic field. The first row shows the variation of the axial (m = 0) component of the field. The following rows show the magnitudes of the higher order components. The bottom row displays the monthly sunspot number during this time, taken from WDC-SILSO.
