Fig. 7.
Download original image

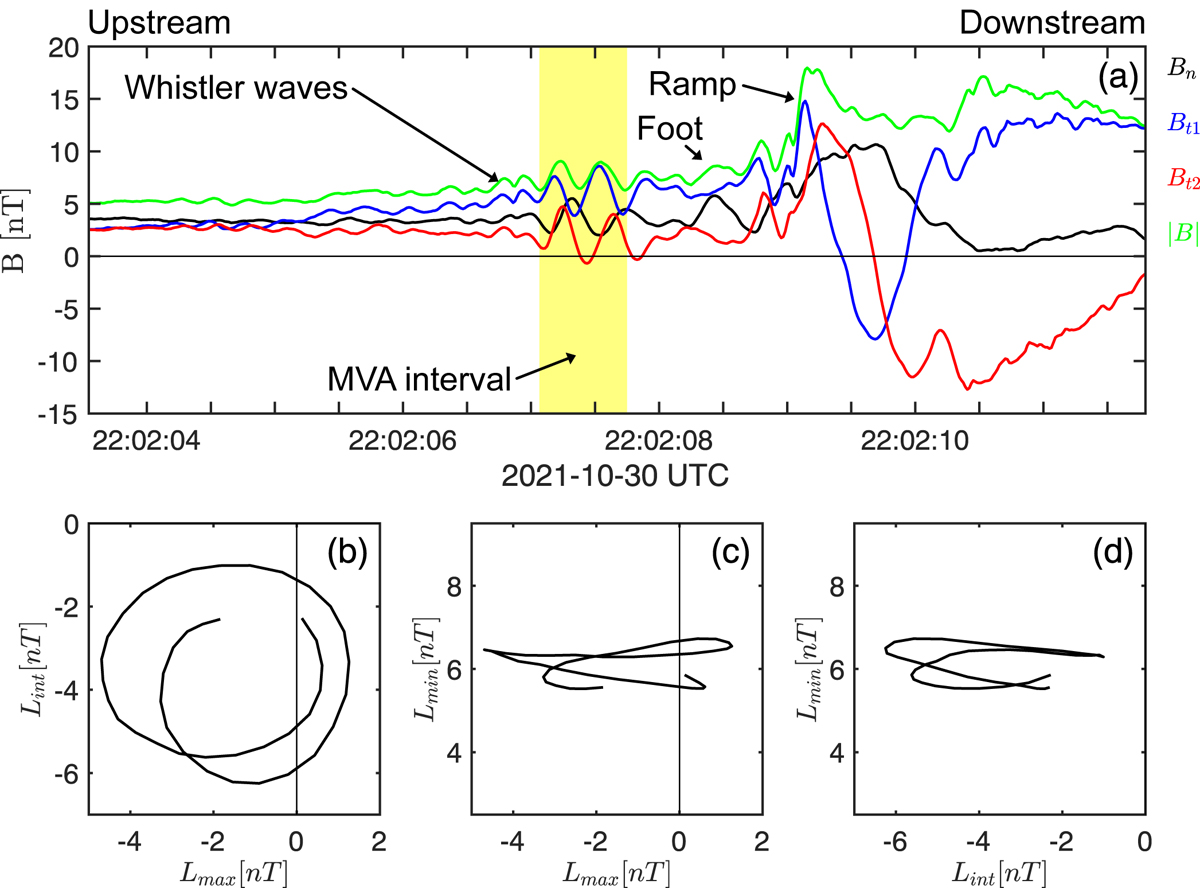

Wave packets in the shock foot region. The top panel shows the magnetic field across the shock front. The bottom panels, panels b to d, are hodograms calculated over the yellow highlighted region in panel a.
