Fig. 10.
Download original image

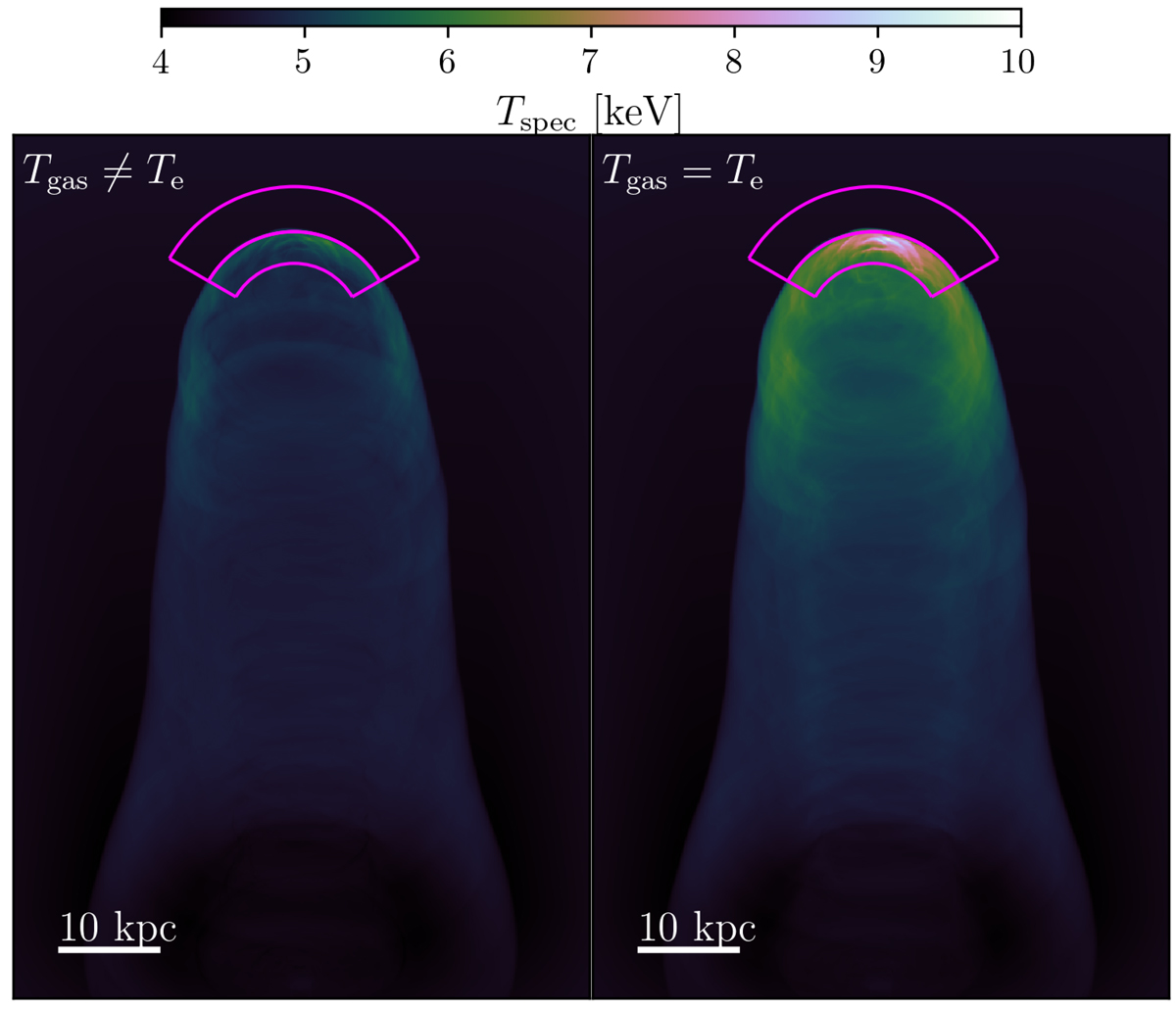

Spectroscopic-like temperature maps in the case of two-temperature shock (left) and one-temperature shock (right) at a 60° viewing angle. The magenta annular sector is used to measure the extracted post- and pre-shock temperatures, while the middle arc shows the position of X-ray discontinuity.
