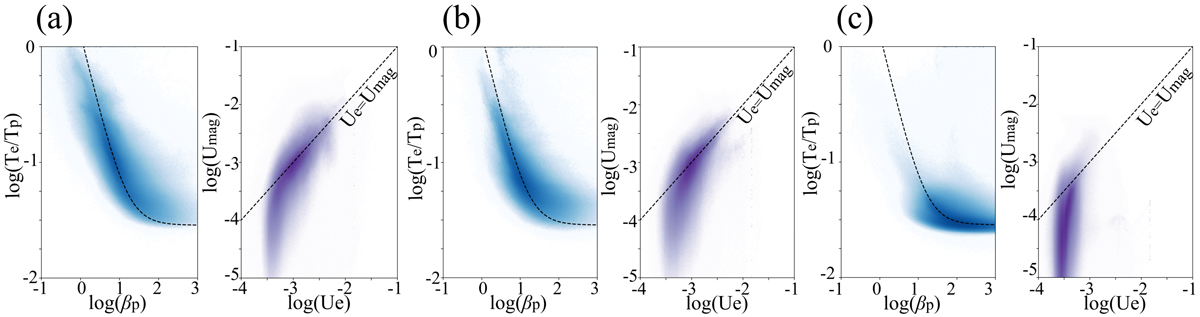

Fig. 10.

Download original image
Relationship of three energy components: electron thermal energy, proton thermal energy, and magnetic field energy. Left: Te/Tp − βp histogram for regions in the cocoon for model A (a), model B (b), and model (c) at t = 9.52 − 9.94 and 13.02 Myr, respectively. The dashed line depicts the electron to proton temperature ratio corresponding to the equilibrium state for plasma βp, as implied by the turbulence heating in Eq. (24). Right: Same as left panel, but displaying Ue − Umag histogram. Dashed line plots Ue = Umag.
