Fig. 2

Download original image

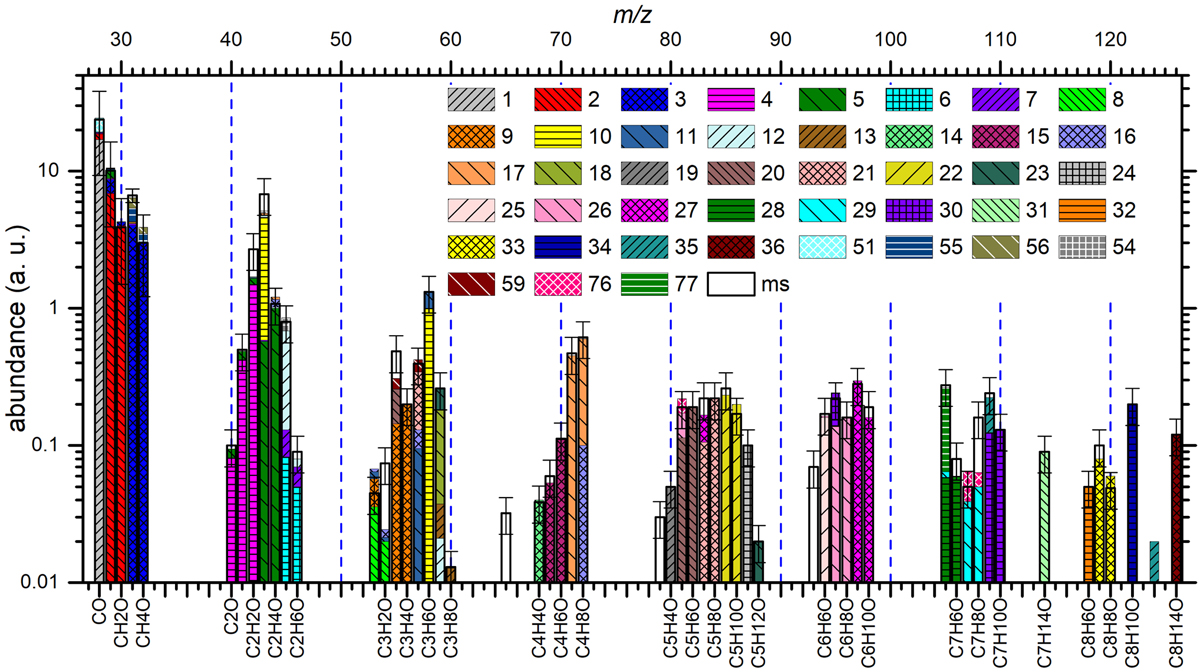

Occam’s razor-based deconvolution of the subset of signals associated with the CnHmO species as detected by the DFMS on 3 August 2015. The measured signals (ms) are given in arbitrary units (a. u.) with 30% error margins. With the color coding, we show the different contributions of the individual molecules to the observed sum fragmentation pattern of the CnHmO species (see the main text for details). The following 36 molecules were selected: (1) carbon monoxide, (2) formaldehyde, (3) methanol, (4) ketene, (5) acetaldehyde, (6) dimethyl ether, (7) ethanol, (8) 2-propynal, (9) 2-propenal, (10) acetone, (11) propanal, (12) isopropanol, (13) n-propanol, (14) furan, (15) 2,3-dihydrofuran, (16) butanal, (17) tetrahydrofuran, (18) 2-butanol, (19) 2,4-cyclopentadiene-1-one, (20) 2-methylfuran, (21) 2,3-dihydro-4-methylfuran, (22) tetrahydropyran, (23) 1-ethoxypropane, (24) 2-methoxy-2-methylpropane, (25) phenol, (26) 2,5-dimethylfuran, (27) 3-methoxycyclopentene, (28) benzaldehyde, (29) benzyl alcohol, (30) 2,3,5-trimethylfuran, (31) 2-methylcyclohexanol, (32) benzofuran, (33) 4-methylbenzaldehyde, (34) ethoxybenzene, (35) 6-methyl-3,5-heptadien-2-one, (36) 2,6-dimethylcyclohexanone, (51) carbon dioxide, (54) acetic acid, (55) glycolaldehyde, (56) methyl formate, (59) propanoic acid, (76) hydroquinone, (77) benzoic acid. For referencing and to distinguish the two populations, the selected CnHmO molecules have been given numbers below 50, while CnHmO2 molecules were given numbers above 50. Some of the latter produce relevant CnHmO fragments, which we show in this figure and have thus listed.
