Fig. 9.


Download original image

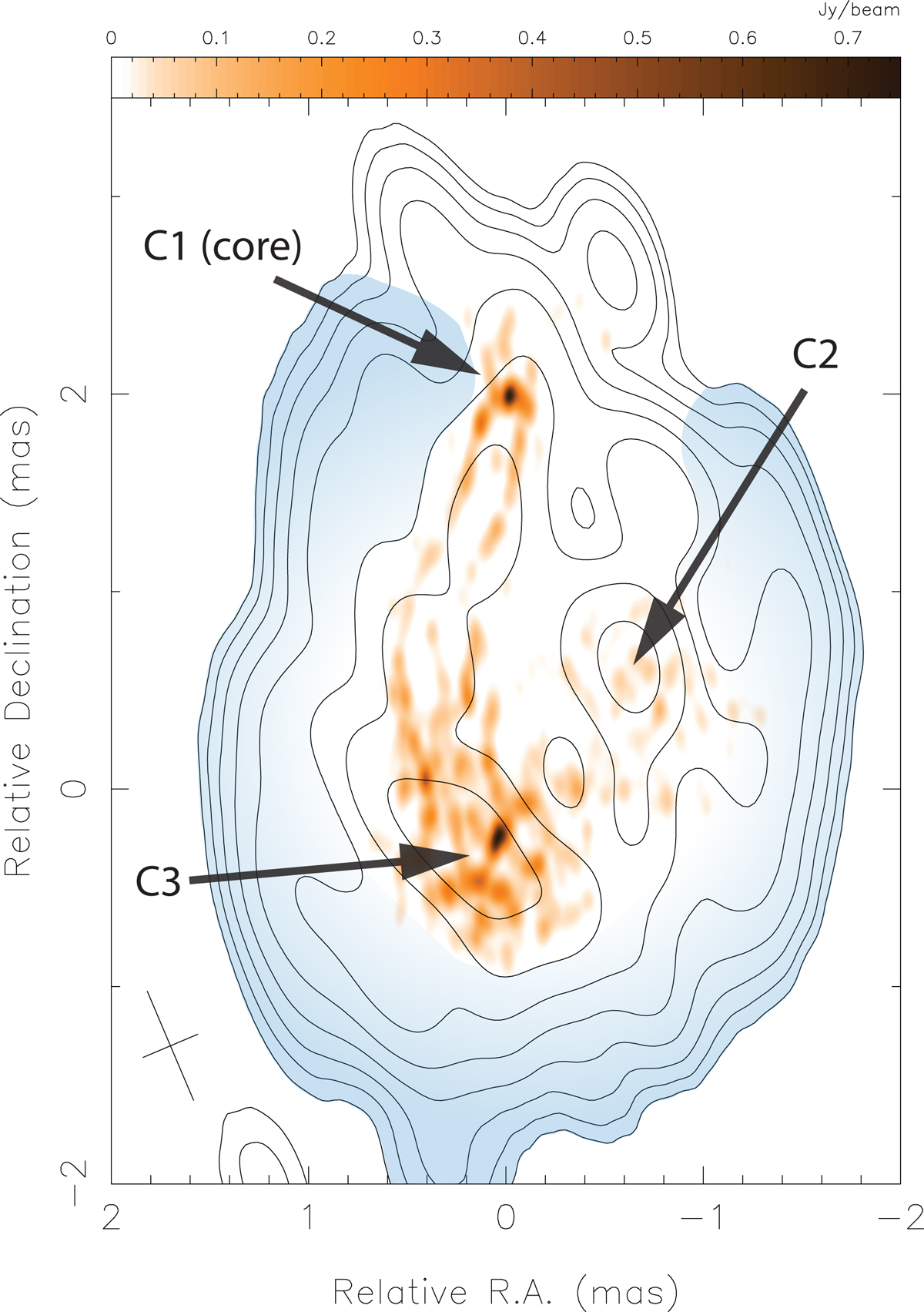

Combined 5 GHz (contours) and 22 GHz (colour scale) RadioAstron CLEAN images that show the location of the mini-cocoon (marked in blue) and the features C1, C2, and C3. Note: C3 refers to the whole extended jet head, not just the bright 22 GHz hot spot inside it. The restoring beam sizes are the same as in Figs. 7 and 8. The contours increase in steps of two from 5 mJy beam−1.
