Open Access

Fig. 6


Download original image

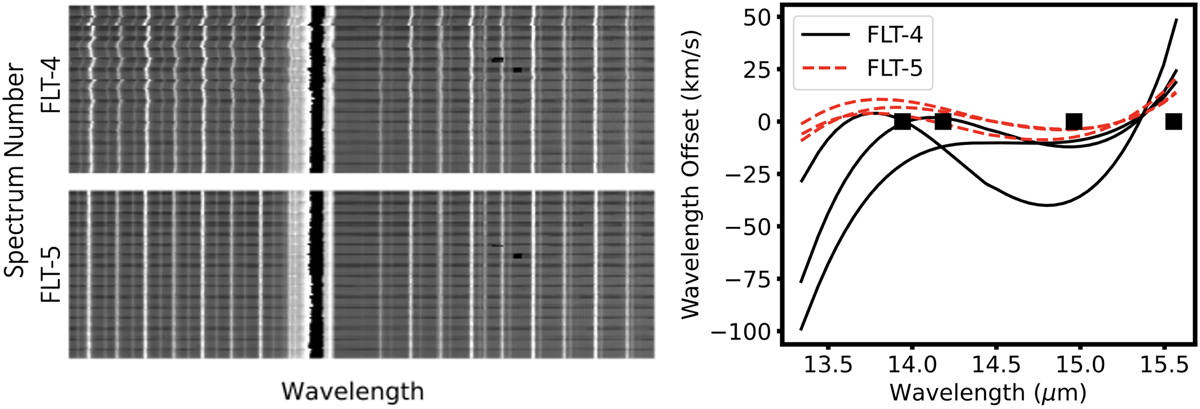

Evaluation of the wavelength distortion model and its accuracy. Left panel: Spectra of Saturn from 80 different locations throughout the Ch3B FOV plotted as a function of wavelength using the FLT-4 and FLT-5 wavelength solutions; note how FLT-5 resolves wavelength calibration artifacts seen for some locations. Right panel: Wavelength offset as a function of wavelength of the FLT-4 (black solid lines) and FLT-5 (red dashed lines) spectra against the atmospheric models produced using radiative transfer code NEMESIS for three arbitrarily selected positions within the Ch 3B FOV. Solid black squares represent the locations of the HI 17−10, HI 13−9, HI 16−10, and [NeIII] λ15.5551 µm features used to constrain the FLT-4 models from NGC 6543.

Current usage metrics show cumulative count of Article Views (full-text article views including HTML views, PDF and ePub downloads, according to the available data) and Abstracts Views on Vision4Press platform.

Data correspond to usage on the plateform after 2015. The current usage metrics is available 48-96 hours after online publication and is updated daily on week days.

Initial download of the metrics may take a while.
