Fig. 14.

Download original image

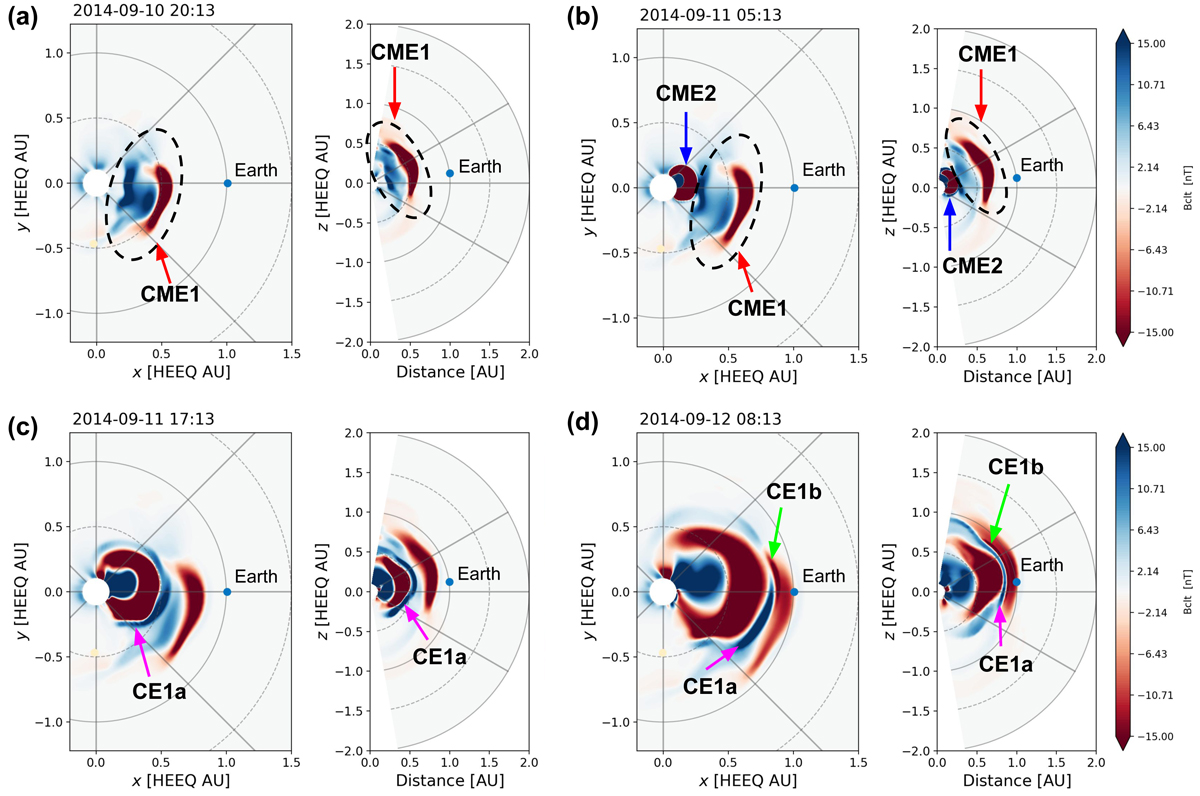

Evolution of Bz in the heliosphere as simulated in Run4. The co-latitudinal component in the spherical coordinate system is Bclt, which is equivalent to −Bz on the ecliptic plane. The red and blue spectra of the colour bar correspond to positive and negative Bz, respectively. Each of the panels (a) to (d) shows the view of the equatorial (X–Y) plane and the meridional (X–Z) plane at a particular time, mentioned at the top of each. (a) CME1 in the pre-interaction phase is identified schematically with a dashed ellipse; (b) CME2 is shown evolving behind CME1 in the early stage of interaction; (c) CME2 is seen compressing the interval of the trailing negative Bz component of CME1 to create CE1a (darker blue region) in the sheath ahead of itself; and (d) CE1a is seen to be further compressing the interval of the leading positive Bz component of CME1 to create CE1b (darker red region) during the interaction phase of the event. The animation of this figure can be found online.
