Fig. 8.
Download original image

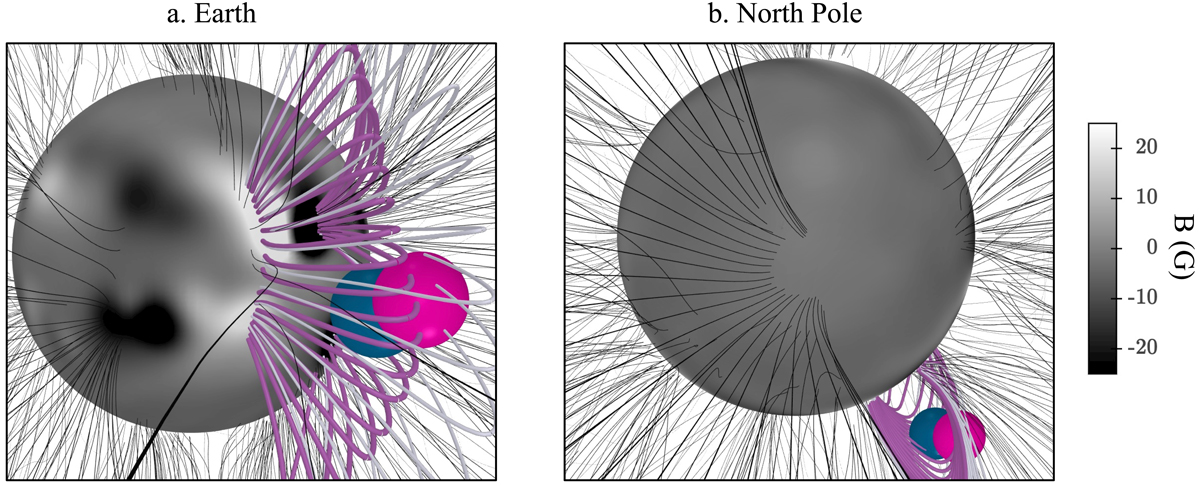

3D location of the splitbands at 13:36:29 UT. The 3D location of the UB (magenta sphere) and LB (blue sphere) at 13:36:29 UT together with closed (grey and magenta) and open (black) field lines obtained from the MAST model from Earth’s perspective a and the solar north pole perspective b. The UB and LB points correspond to the centroids in Fig. 2c.
