Fig. 6
Download original image

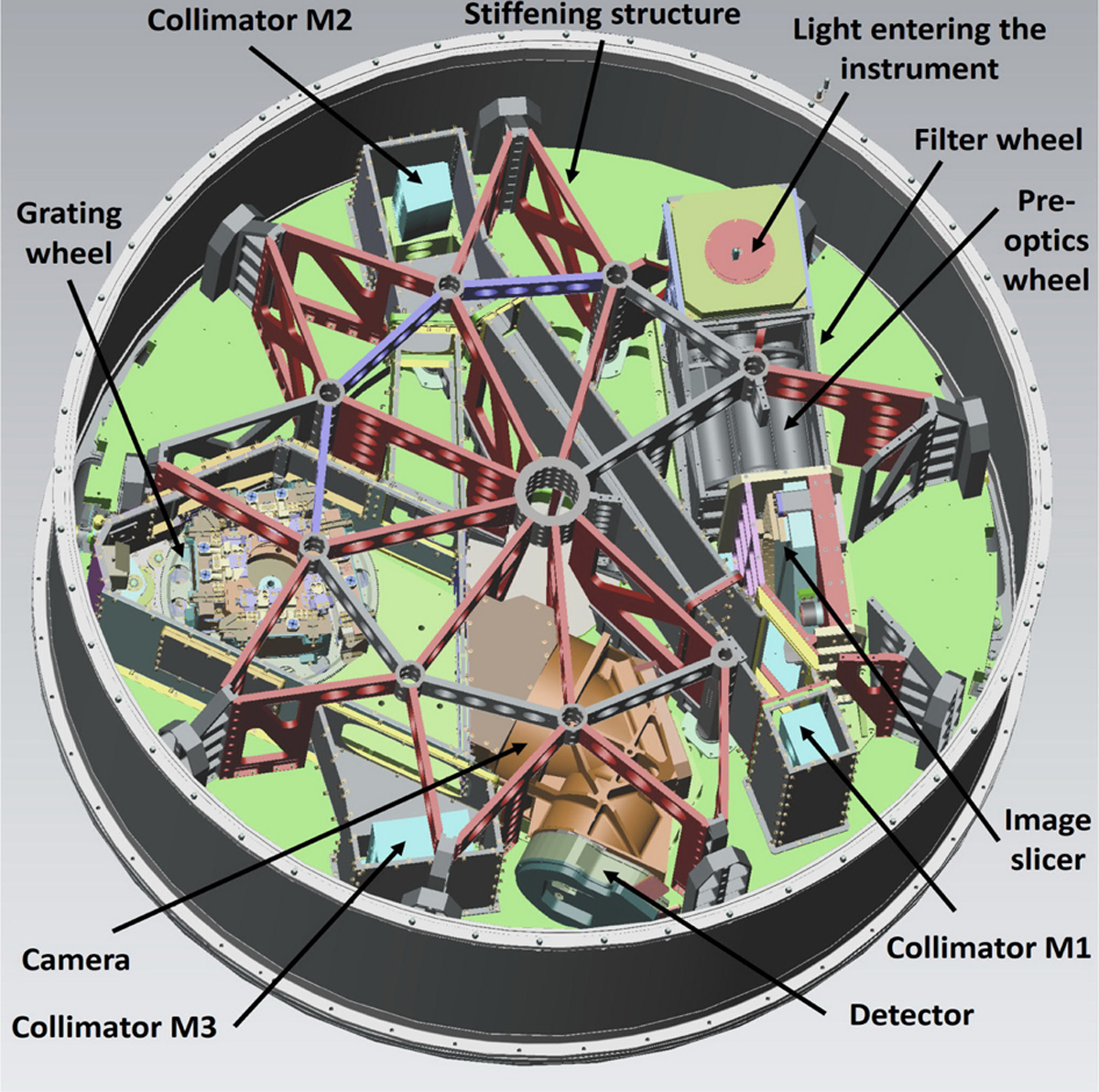

Drawing of the inside of the SPIFFIER cryostat. The optical path and locations of the main cryogenic opto-mechanical components are shown. The cryostat is cooled by liquid nitrogen. In order to illustrate these better, some parts of the housings and stiffening structure have been omitted.
