Fig. 3
Download original image

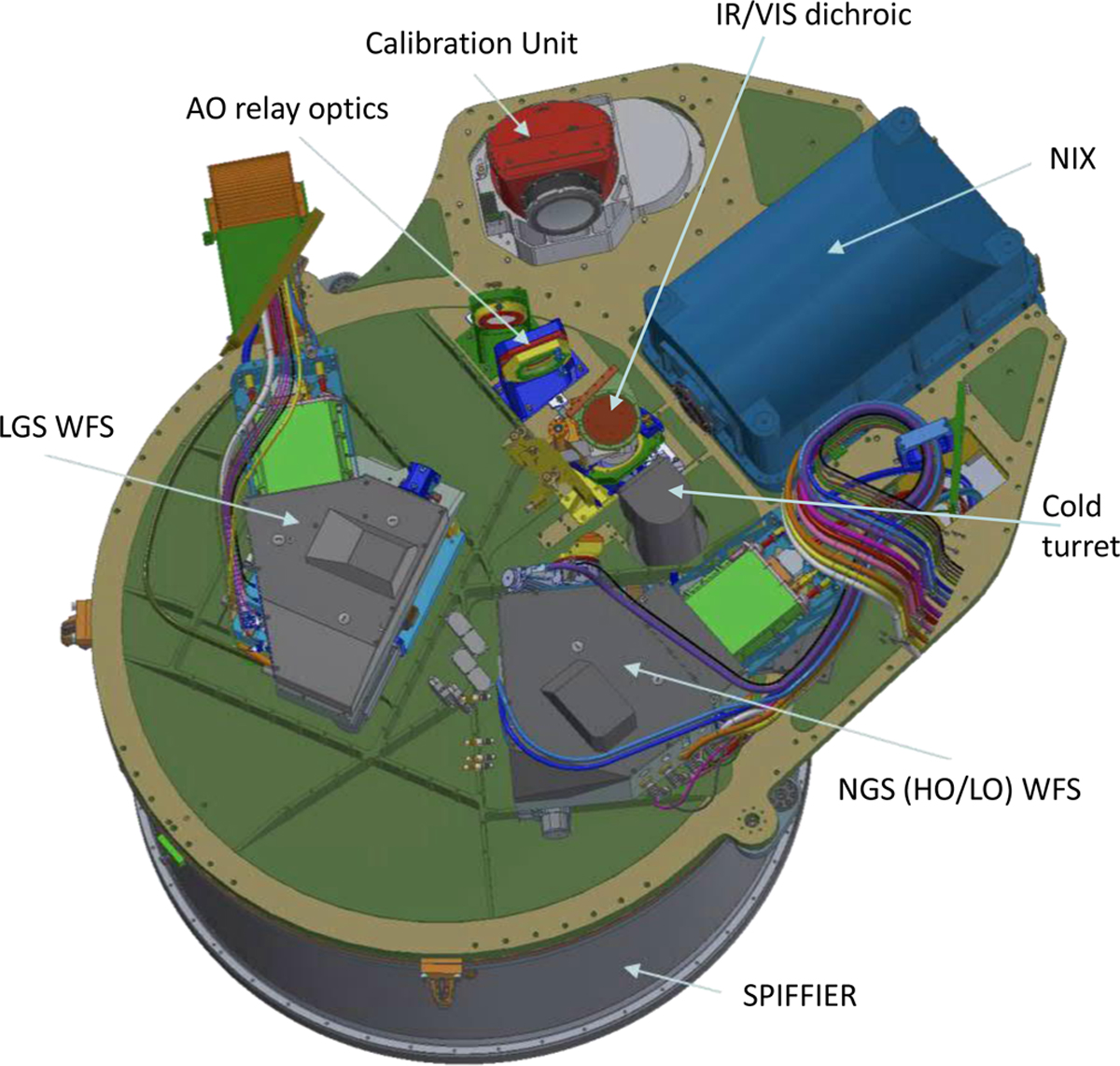

Optical bench of the Warm Optics, which fits into a volume only 30 cm high. The IR/VIS dichroic reflects the visible light to the AO relay optics. The next element is a notch filter that transmits the laser light, which is then reflected by a fold mirror to the LGS WFS. The rest of the visible light is reflected to the NGS WFS.
