Fig. 14.
Download original image

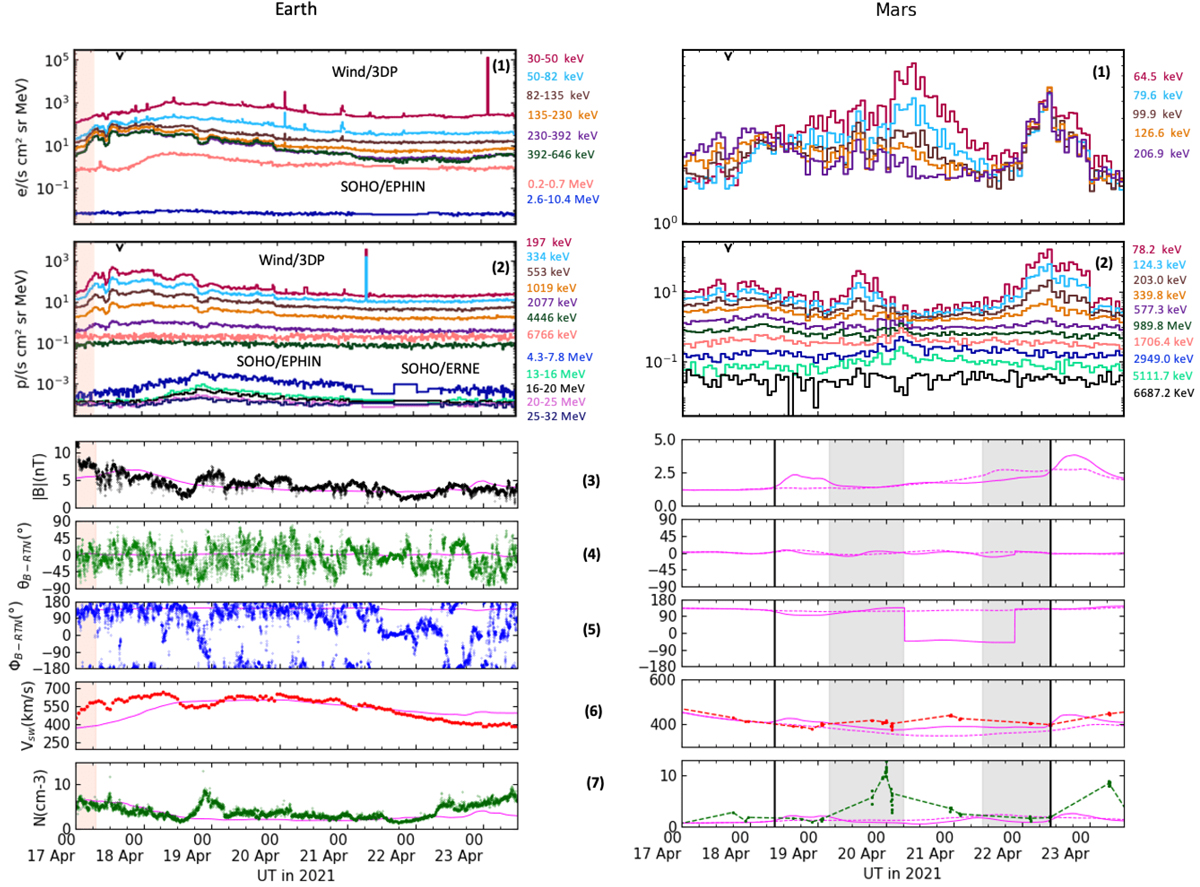

In situ SEP time profiles as well as plasma and magnetic field observations by Earth (left) and Mars (right). Top: Energetic electron and proton time profiles observed from several energy channels. Flare time and IP structures as in Fig. 12. Bottom: In situ plasma and magnetic field observations. Panels as in Fig. 12. The pink dashed lines are the ENLIL background solar wind with no CMEs included in the simulation.
