Fig. 21

Download original image

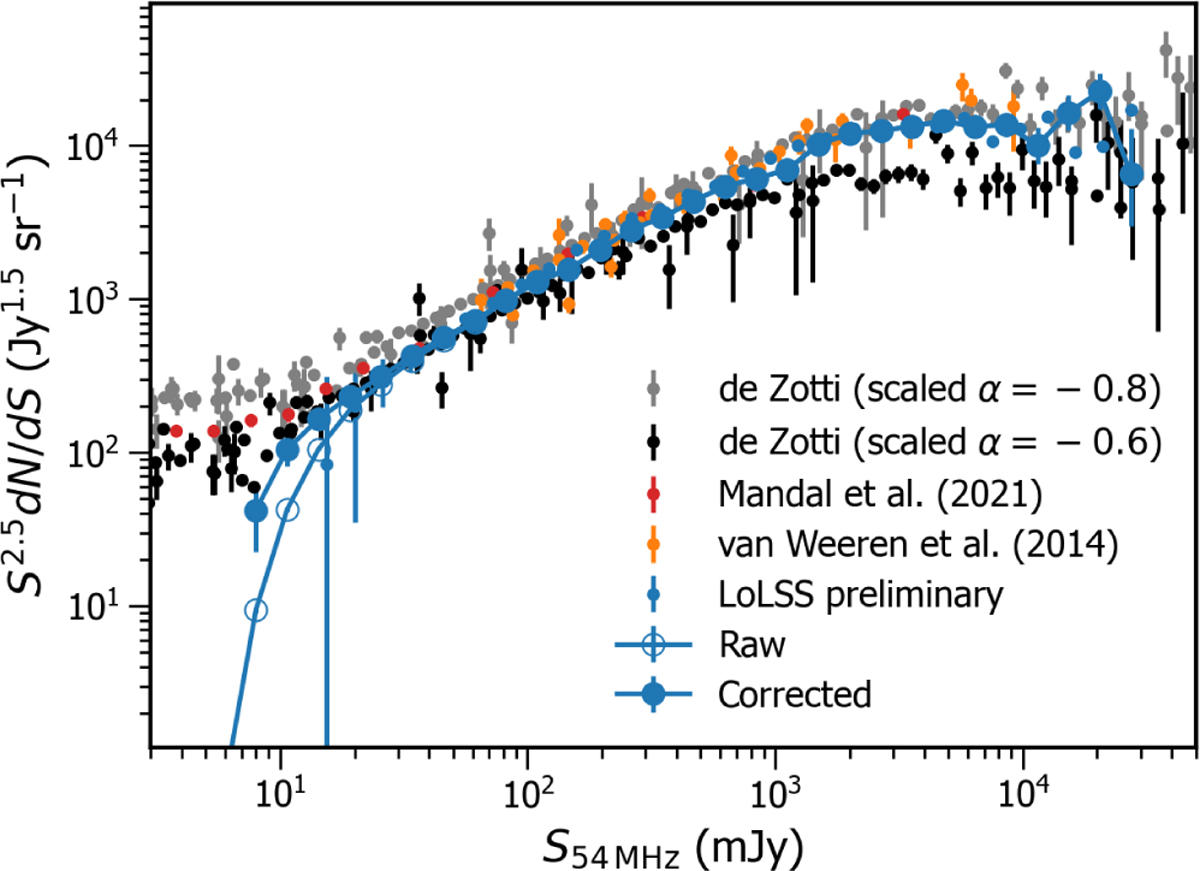

Euclidean-normalised differential source counts for LoLSS between 10 mJy and 30 Jy. The open circles show the raw, uncorrected source counts, while the filled circles show the counts corrected for completeness and resolution bias. The 1.4 GHz source counts from various surveys compiled by De Zotti et al. (2010), and scaled to 54 MHz assuming a spectral index of −0.8 (in grey) and 4−0.6 (in black) are shown for comparison. Also for comparison are the LOFAR LBA source counts by van Weeren et al. (2014) at 32, 46 and 62 MHz (in orange) and the deep LOFAR 146-MHz source counts by Mandal et al. (2021, in red), all scaled to 54 MHz with a spectral index of −0.8.
