Fig. 2.

Download original image

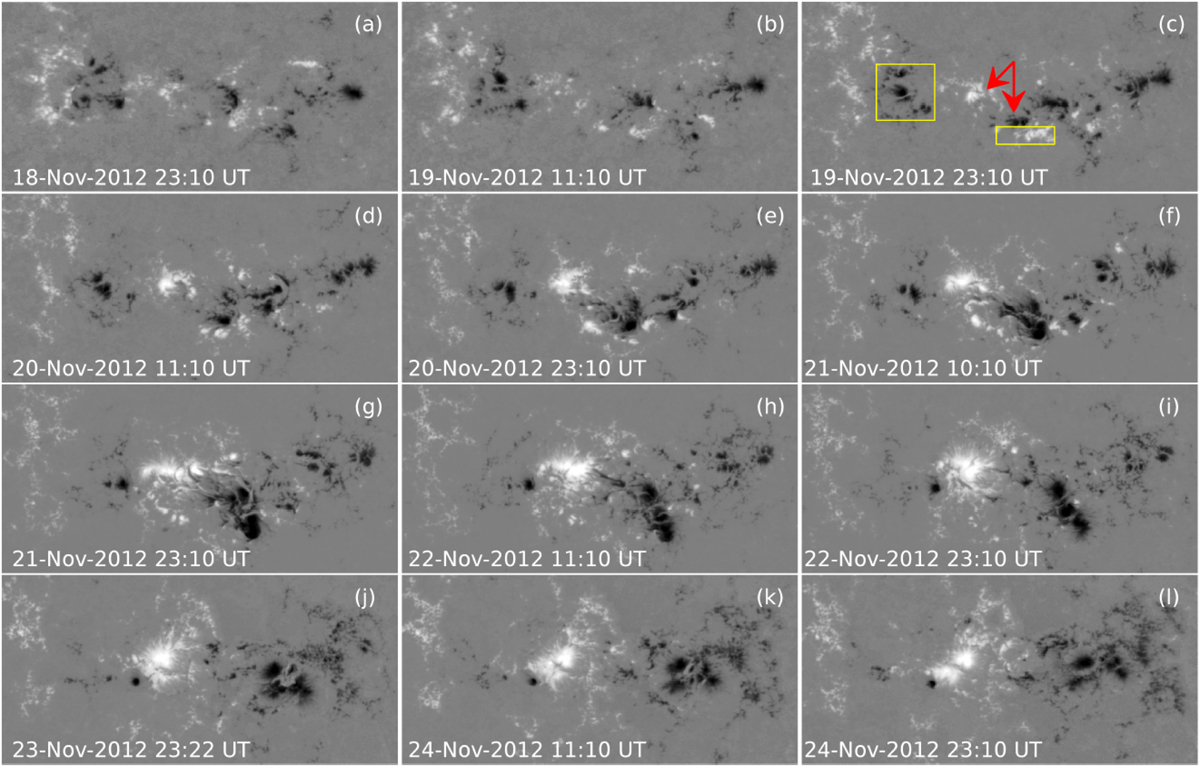

Selected images of the normal component of the photospheric magnetic field of AR11618 taken by the HMI during the interval studied in this paper. The red arrows indicate sites of major flux emergence while the yellow boxes enclose areas whose magnetic flux was affected by cancellation. The field of view of each panel is 611″ × 291″. The associated movie is available online.
