Fig. 11.


Download original image

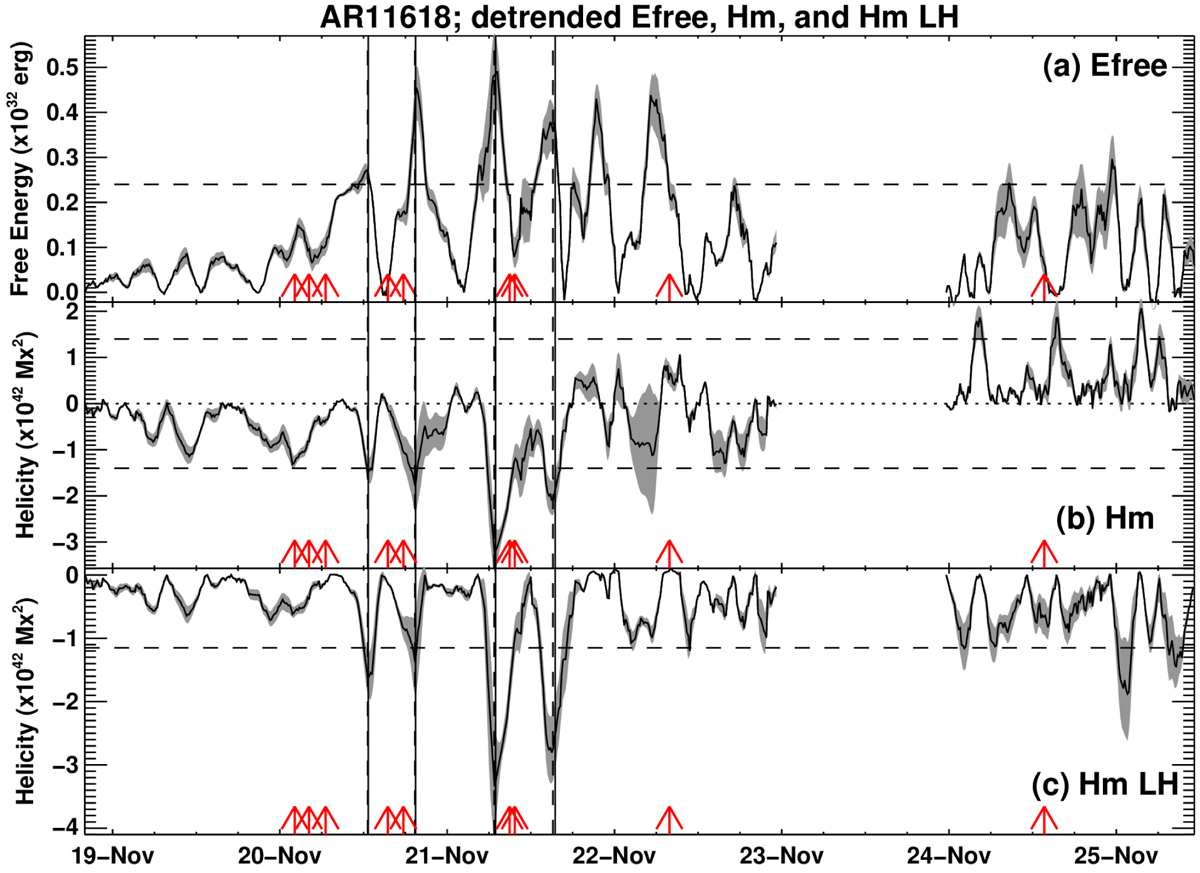

Detrended time series of the free magnetic energy (panel a), the net helicity (panel b), and the prevailing signed component of helicity (left-handed, panel c) for AR11618. The dashed lines denote the ±2σ level of the quantities and the dotted line the zero helicity.
