Fig. 10.
Download original image

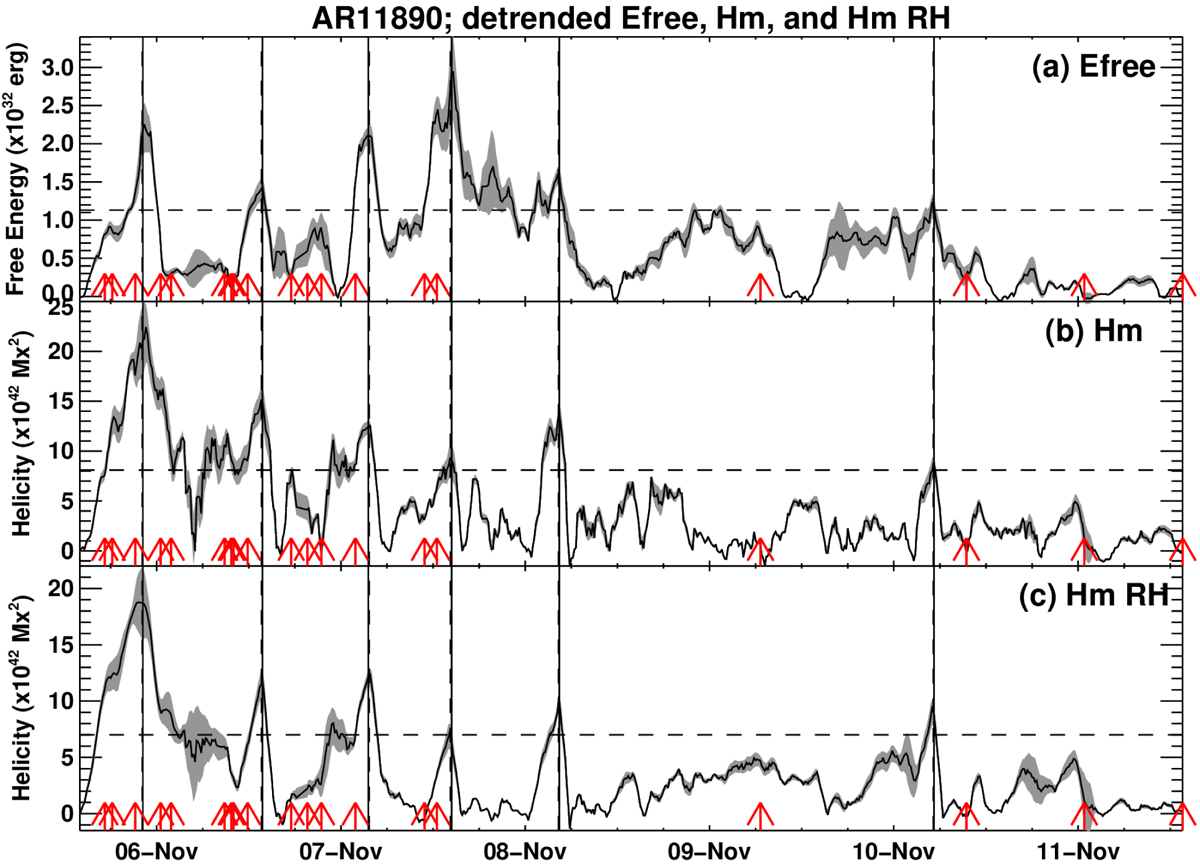

Detrended time series (see text for details) of the free magnetic energy (panel a), the net helicity (panel b), and the prevailing signed component of helicity (right-handed, panel c) for AR11890. The dashed lines denote the 2σ level of the quantities above the (removed) background.
