Fig. 4

Download original image

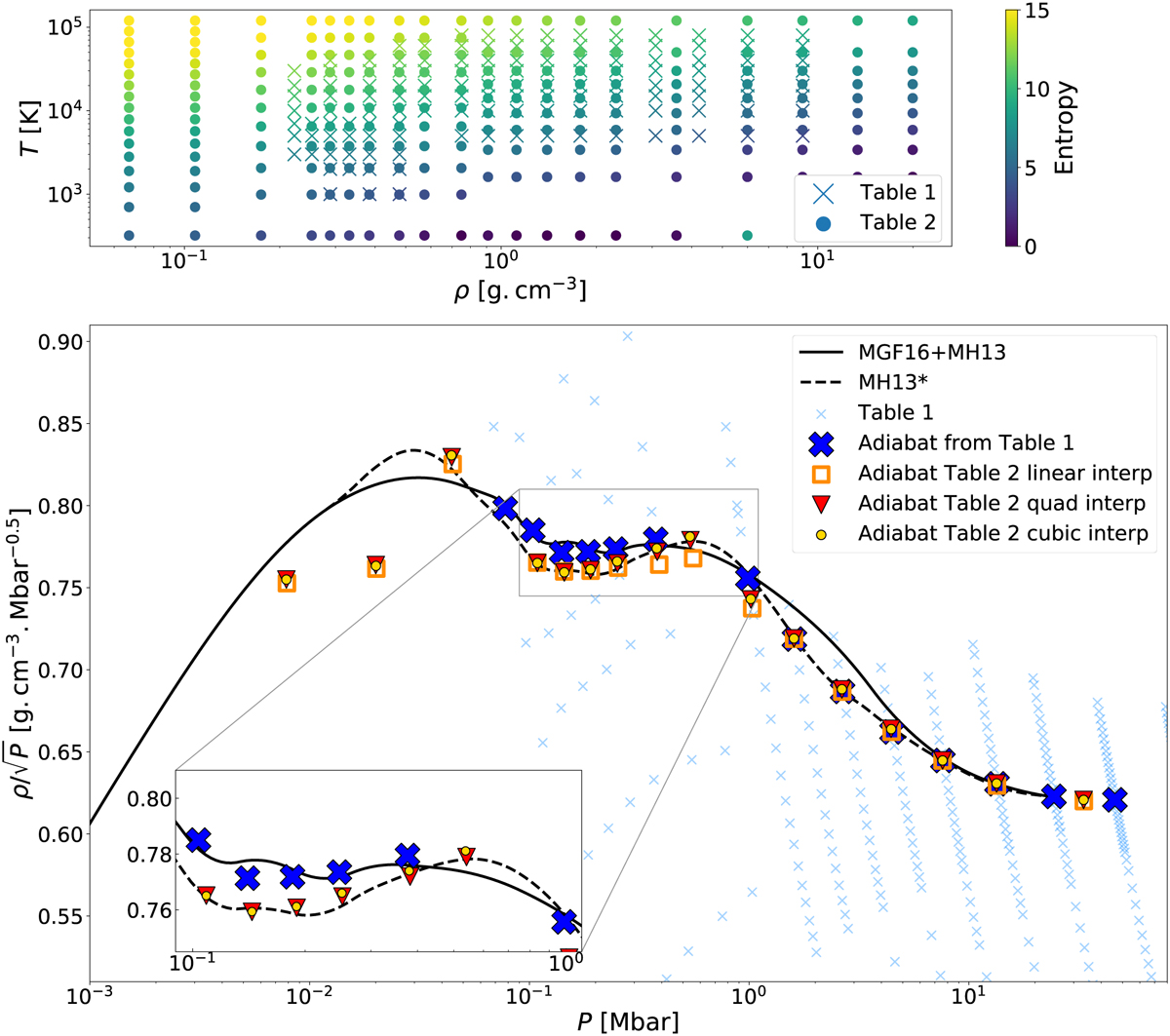

Comparison between the MH13* and MGF16+MH13 EOSs. Top panel: comparison of Tables 1 and 2 from Militzer & Hubbard (2013). Bottom panel: comparison of adiabats obtained with the MH13* and MGF16+MH13 EOSs and of points obtained by direct interpolation of the above tables. The points of Table 1 from Militzer & Hubbard (2013) are shown as blue crosses. The locations at which the entropy is equal to 7.078061 kbel.−1 (a typical value of entropy for Jupiter) according to the interpolations in the two tables are shown with different symbols, as labelled.
