Fig. 4.

Download original image

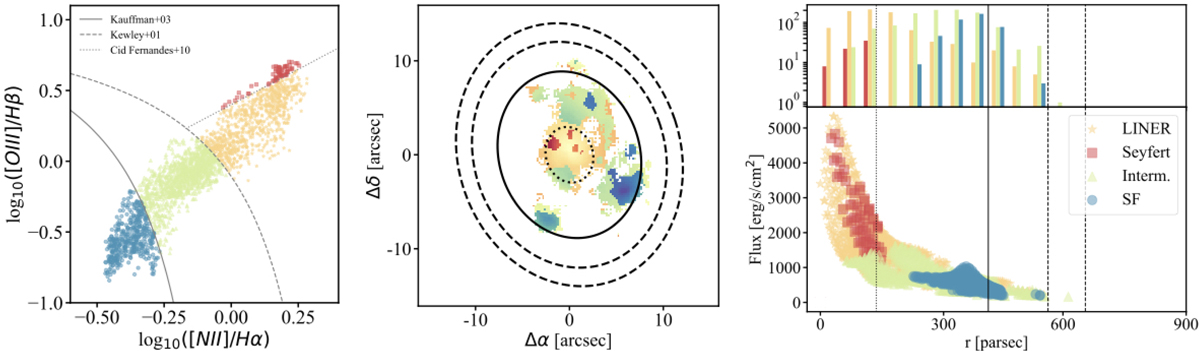

NGC1433 BPT classification: Left: BPT diagram (Baldwin et al. 1981) classification of each spaxel for the ND in NGC 1433. The BPT classification is continued in the middle and right panels, which display the physical position of the different spaxels and the light radial profile, respectively. We also display the radius of the inner mask dominated by AGN contributions (dotted contours), the radius of the ND (solid contours), and the representative ring (dashed contours).
