Fig. 4


Download original image

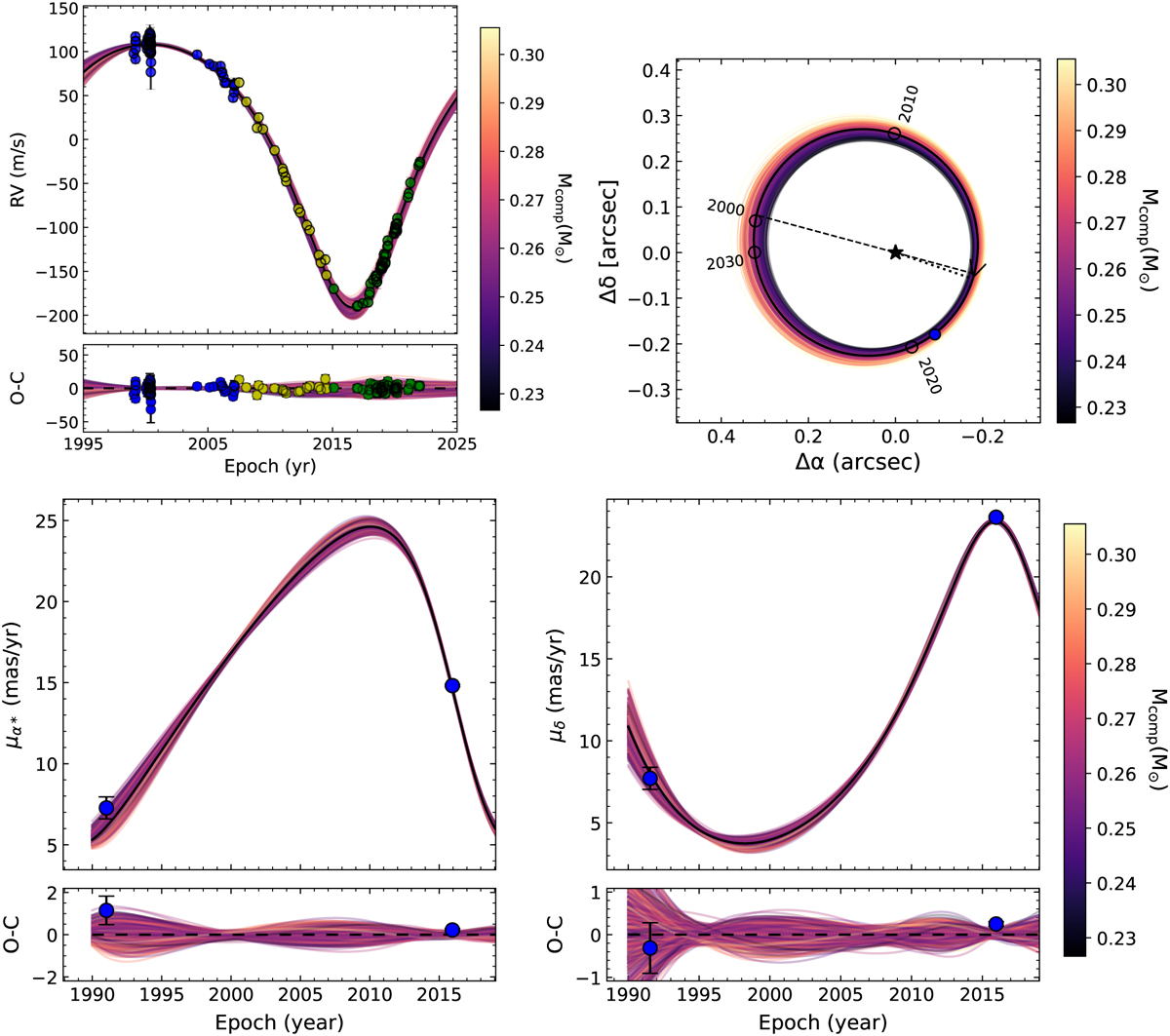

Orbit fits of HD 92987 using the orbit-fitting code orvara. Top left: radial-velocity orbit induced by HD 92987 B over a full orbital period. Shown are the radial-velocity data of COR-98 (blue points), COR-07 (yellow points), and COR-14 (green points). The thick line shows the highest likelihood fit; the thin colored lines show 500 orbits drawn randomly from the posterior distribution. Top right: relative astrometric orbit of HD 92987 B. The thick black line represents the highest likelihood orbit; the thin colored lines represent 500 orbits drawn randomly from the posterior distribution. Dark purple corresponds to a low companion mass and light yellow corresponds to a high companion mass. The dotted black line shows the periastron passage, and the arrow at the periastron passage shows the direction of the orbit. The dashed line indicates the line of nodes. Predicted past and future relative astrometric points are shown by black circles with their respective years, while the observed relative astrometric point from VLT/SPHERE data is shown by the blue-filled data point, where the measurement error is smaller than the plotted symbol. Bottom: acceleration induced by the companion on the host star as measured from absolute astrometry from Hipparcos and Gaia. The thick black line represents the highest likelihood orbit; the thin colored lines are 500 orbits drawn randomly from the posterior distribution. Darker purple represents a lower companion mass and light yellow represents a higher companion mass. The residuals of the proper motions are shown in the bottom panels.
