Fig. 9.
Download original image

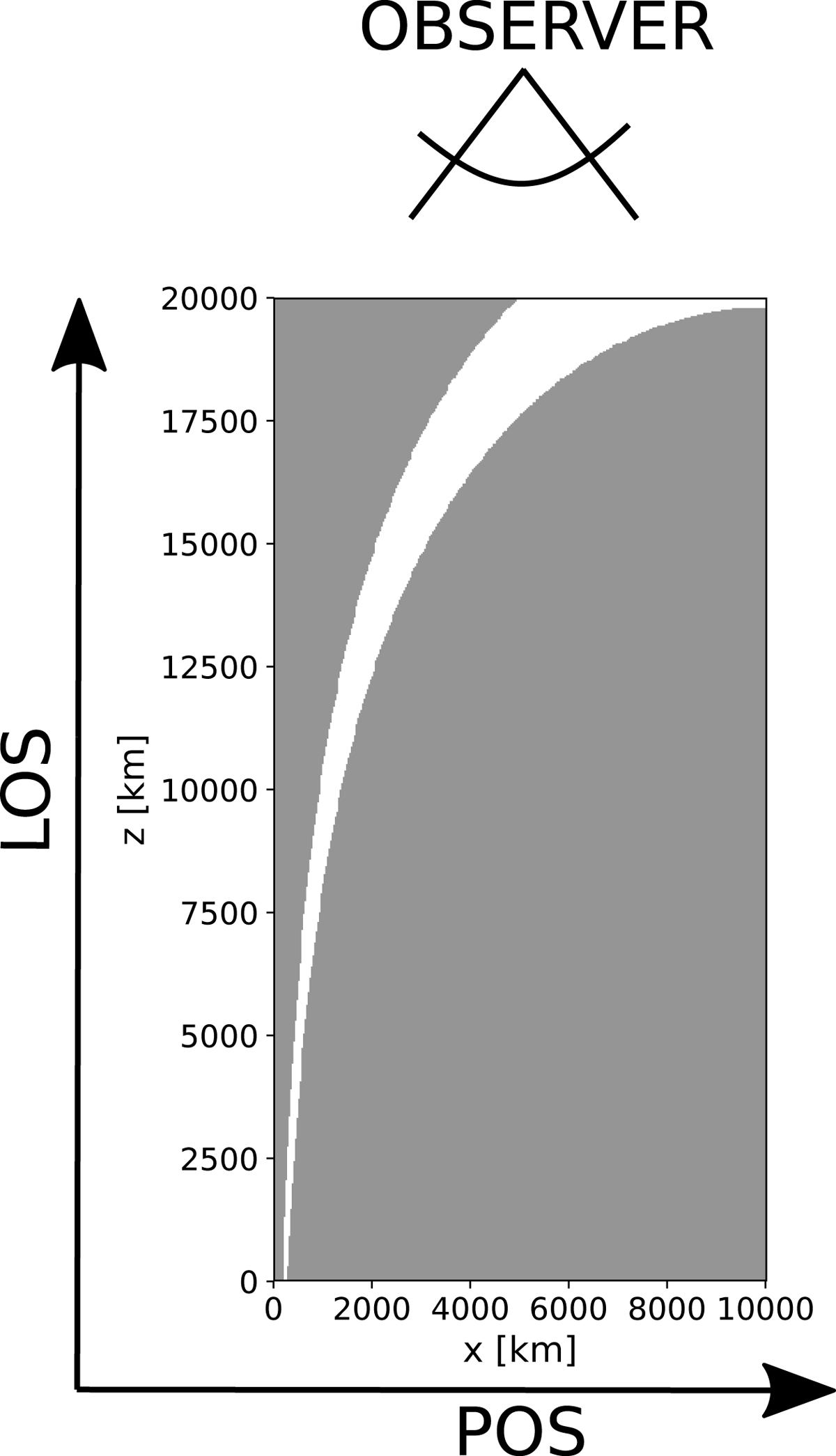

Location of the flux tube extracted from within the simulation domain. The external boundaries are defined by two field lines from the magnetic field Eqs. (8)–(9). The LOS is aligned with the z-axis of the numerical domain and the POS with the x-axis. The observer location is displayed at the top of the domain.
