Fig. 10.
Download original image

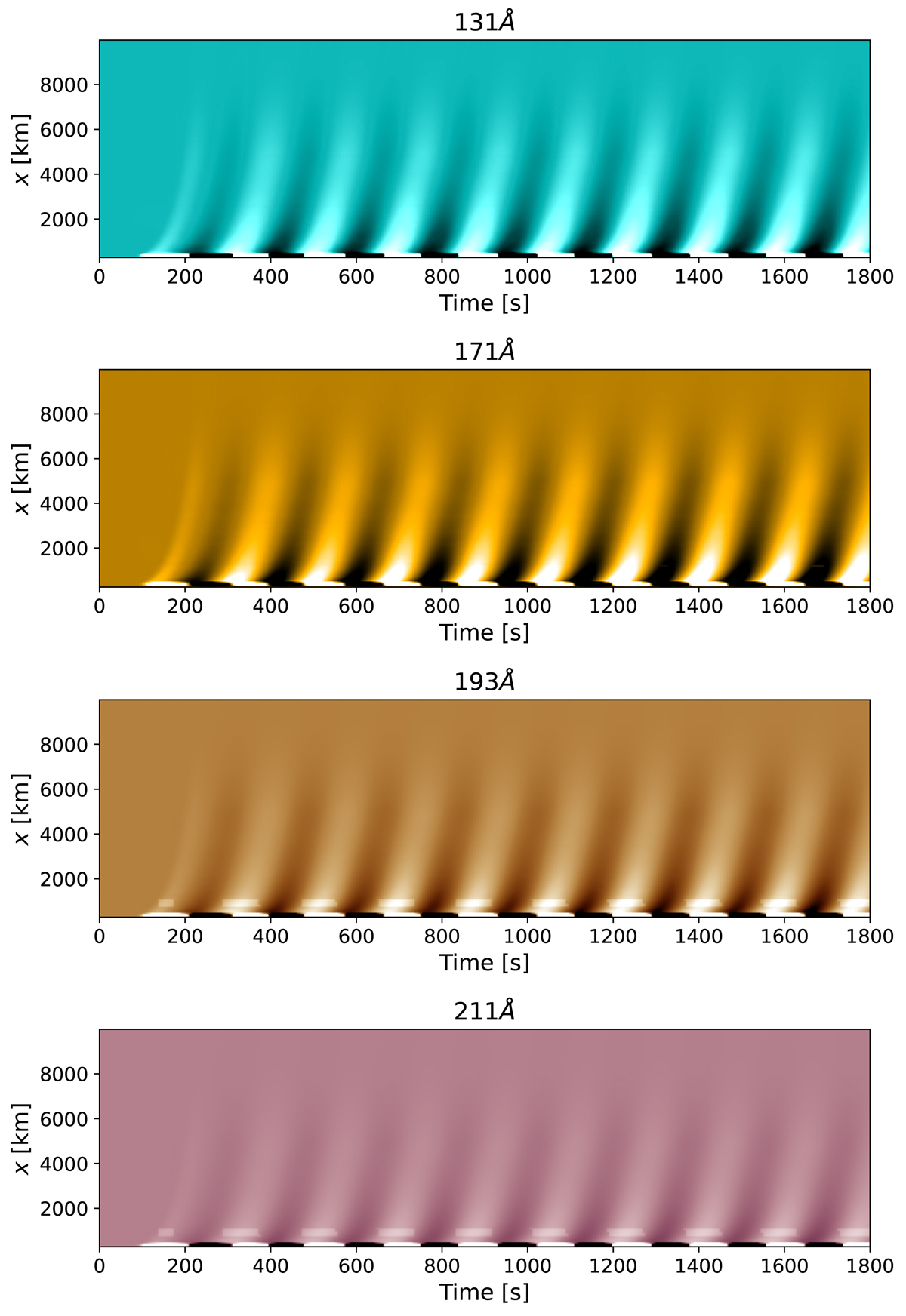

Synthetic time–distance maps (t − d) in the 131 Å, 171 Å, 193 Å, and 211 Å channels (from top to bottom) obtained from the forward modelled intensities along the selected flux tube considering a projection direction parallel to the x-axis as shown in Fig. 9.
