Fig. 1.


Download original image

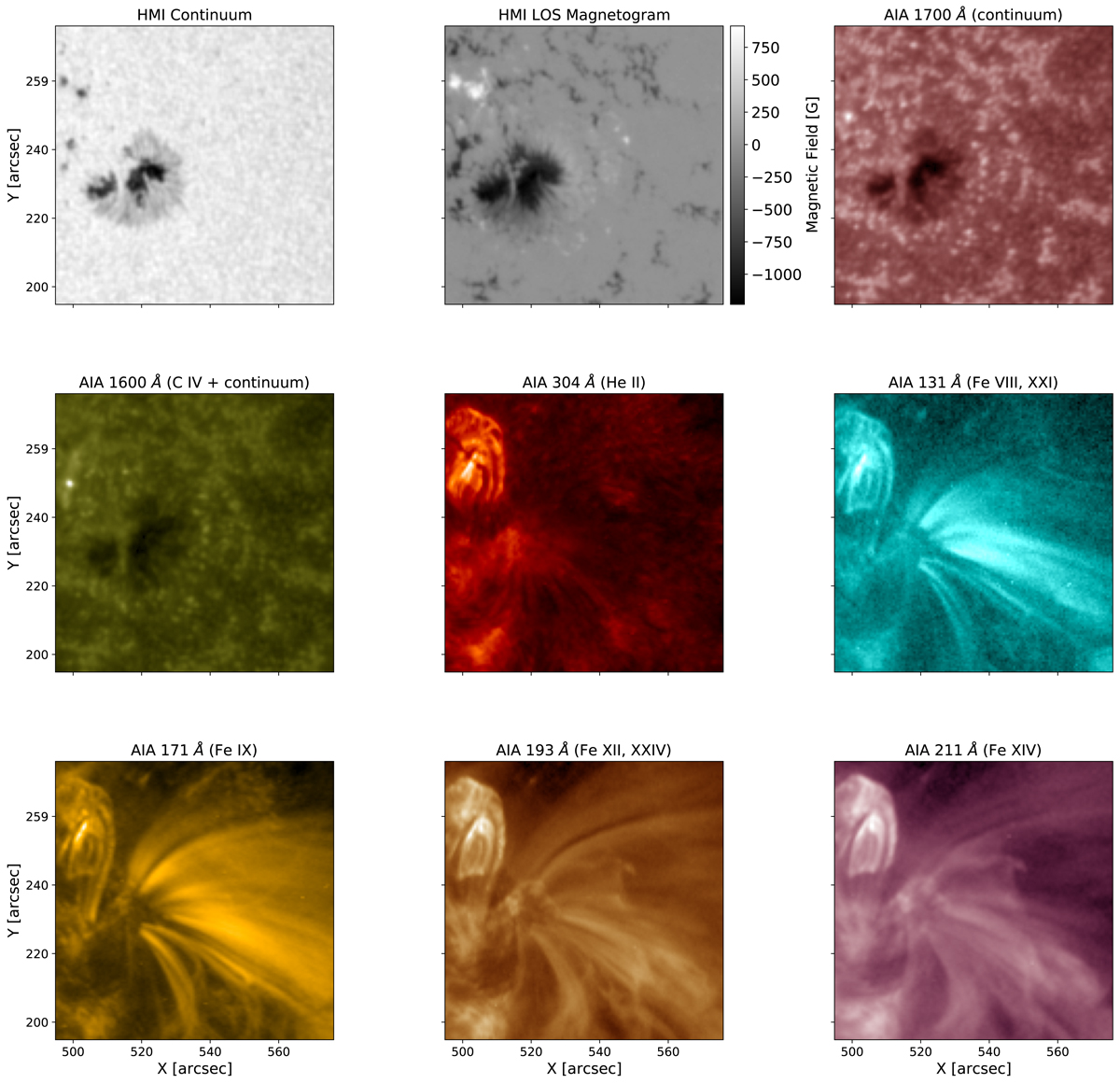

Images of NOAA AR 11243 observed in HMI Continuum, HMI LOS Magnetogram, and AIA channels. The HMI and AIA UV channels show the sunspot associated with the active region while the coronal EUV channels exhibit the fan-like loop structure extending towards the right side. The primary ions of individual channels are listed in the title of each panel following Lemen et al. (2012). The temporal evolution of AIA 171 Å is available in the online movie.
