Fig. A.8.


Download original image

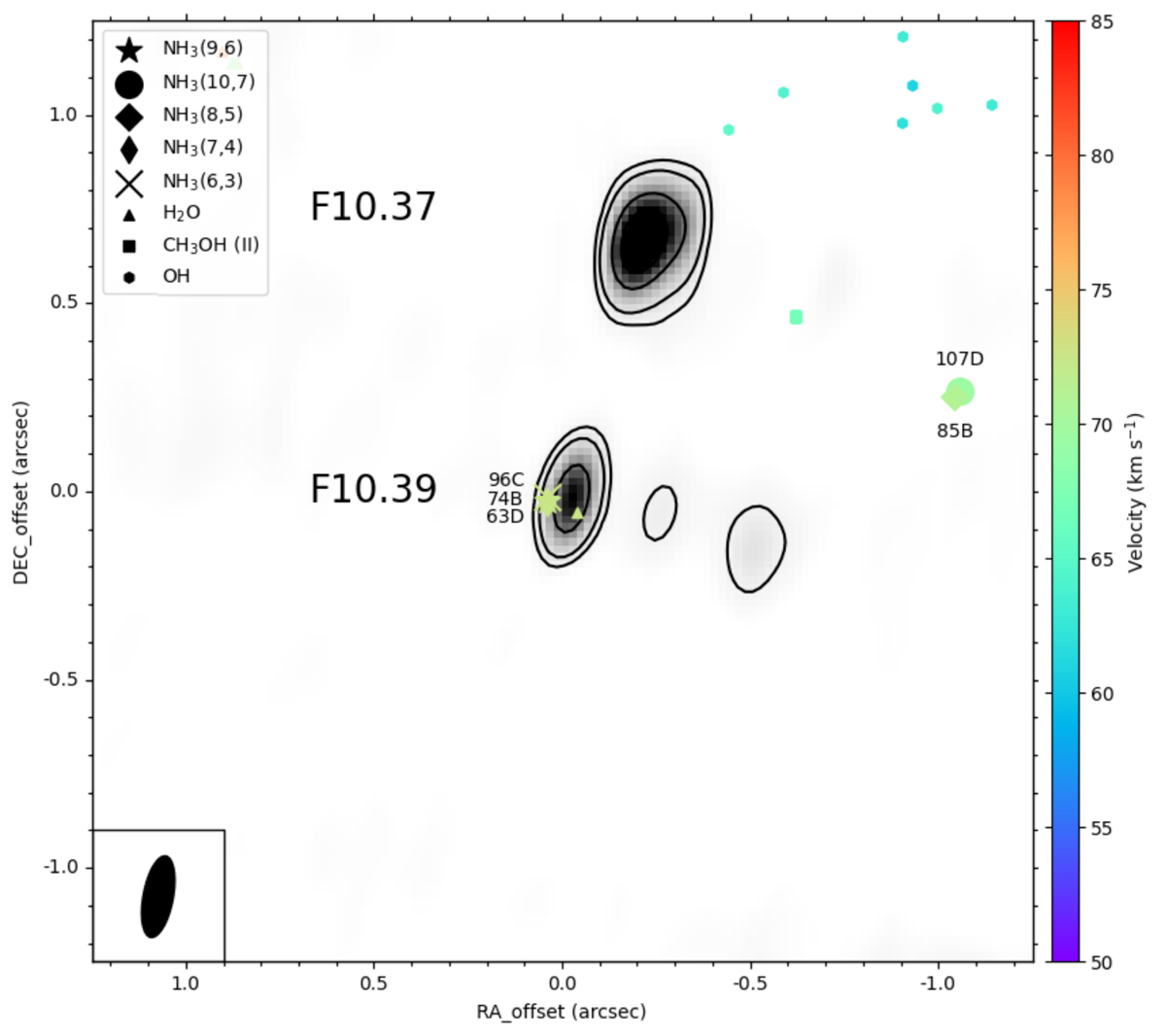

JVLA 1.6 cm continuum map of Sgr B2(M) presented as gray shaded areas and black contours with levels of 5, 10, 30, and 50 × 0.2 mJy beam−1. The reference position is αJ2000 = 17h47m20197, and δJ2000 = −28°23′06484, the peak position of continuum source F10.39. The cross, thin diamond, diamond, circle and star show the positions of NH3 (6,3), (7,4), (8,5), (9,6), and (10,7) emissions. H2O (McGrath et al. 2004), class II CH3OH (Lu et al. 2019), and OH (Gaume & Claussen 1990) masers are presented as triangles, squares, and hexagons, respectively. The color bar indicates the velocity range (VLSR) of the maser spots. The systemic velocity of Sgr B2(M) is VLSR = 62 km s−1 (Belloche et al. 2013).
