Fig. 10
Download original image

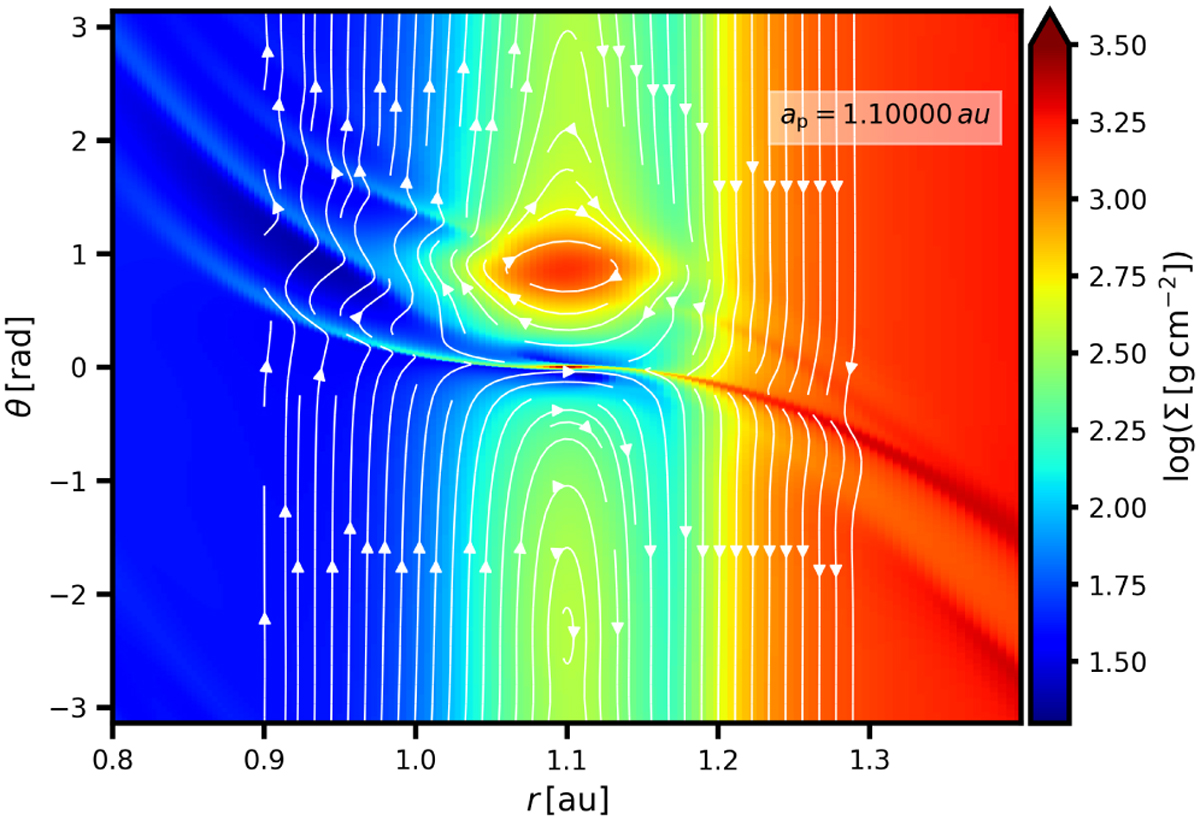

Surface density and streamlines for viscosities αDZ = 10−3, αMRI = 10−1 and TOI-216b in a fixed circular orbit at ap = 1.1 au. The plot serves as a comparison with panel f of Fig. 3 where the planet was migrating. The figure is also available as an online movie showing the variations in Σ and streamlines for all values of ap considered in our static torque measurements.
