Fig. 3

Download original image

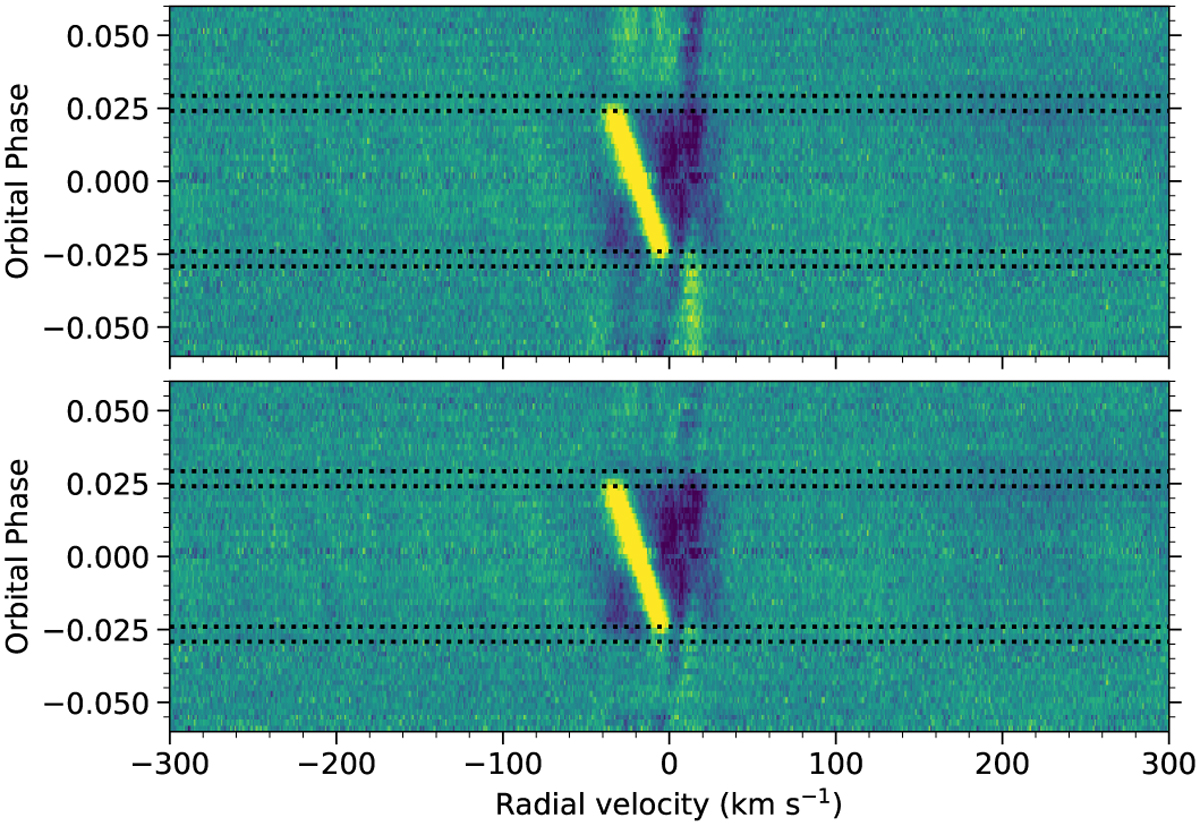

Map of the residual CCFs at different orbital phases before (top panel) and after (bottom panel) the correction of stellar pulsation. Data of two transits were binned in orbital phase with a step size of 0.002. The horizontal dotted lines denote the timings of four transit contacts. The slanted yellow streak during transit delineates the deformation of stellar lines as the planet moving across the stellar disk. The ripples seen in the out-of-transit residual CCFs in the top panel are attributed to stellar pulsation.
