Fig. 16

Download original image

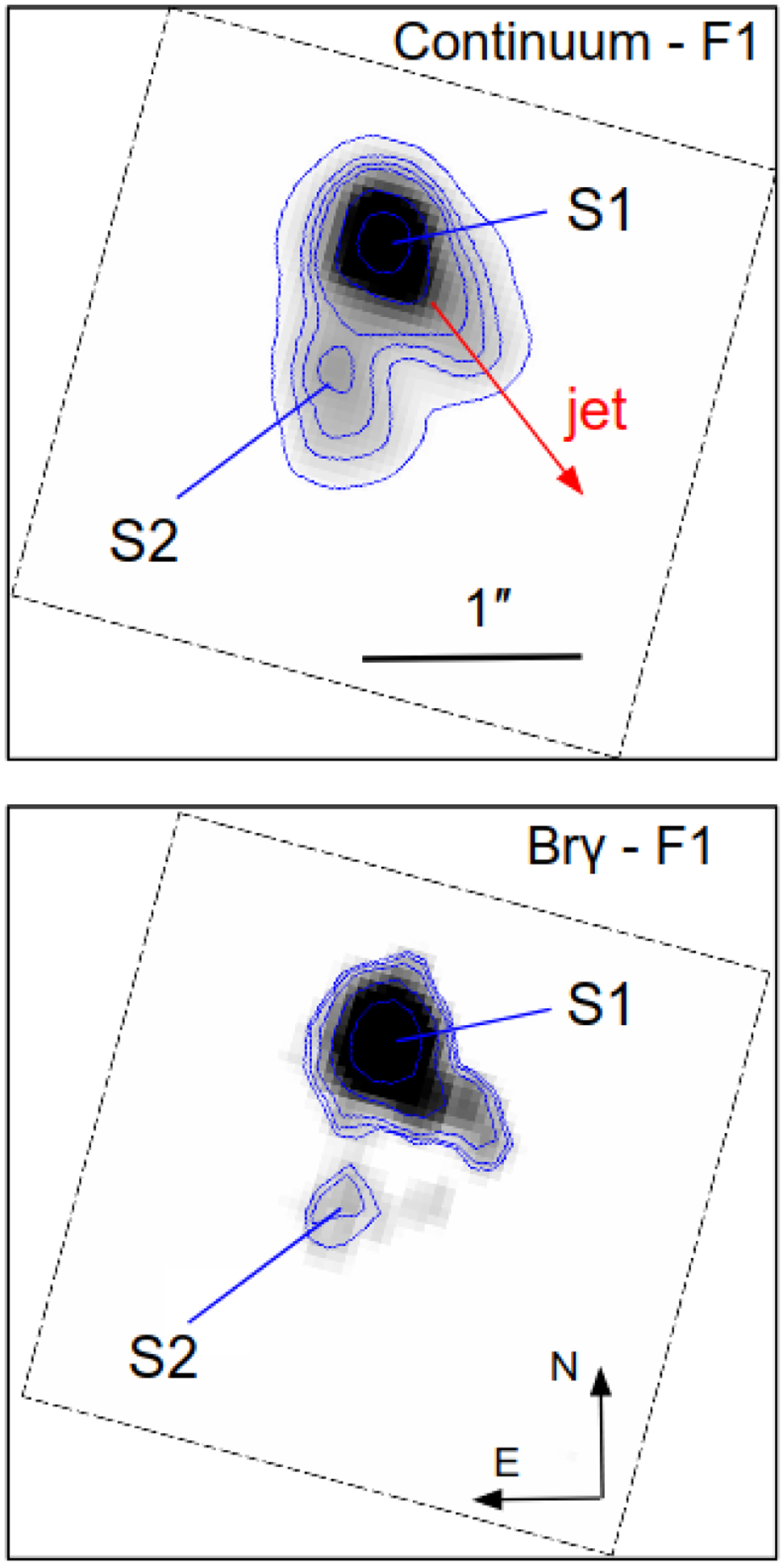

Continuum and Brγ emission toward Field 1 displayed in grayscale with some contours that highlight the presence of two peaks, likely two components of a binary system. These components are called S1 and S2, and the direction of the jet, emerging from S1, is indicated with a red arrow. The separation between S1 and S2 is 0.″7 (a projected distance of about 980 au at the assumed distance of 1.4 kpc). For a better display, both emissions were slightly smoothed with a boxcar function with a factor of 2. The first contours of the continuum and Brγ emissions are 24σ and 4σ, respectively.
