Fig. 3.
Download original image

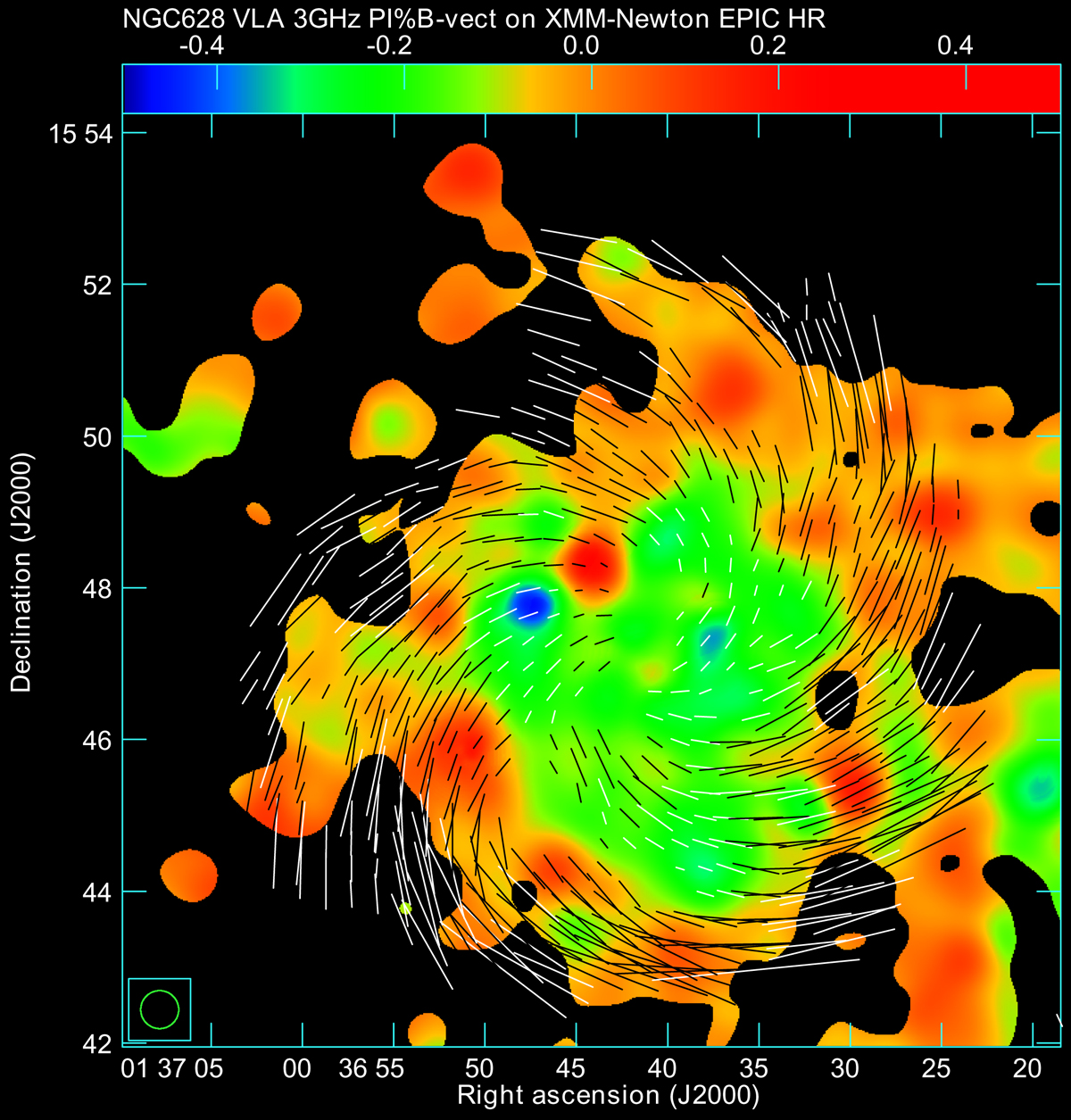

Map of the hardness ratio of the medium and soft X-ray emission from NGC 628 (Fig. 2), overlaid with lines of the magnetic field proportional to the degree of polarisation. The map is truncated at the 3σ level of the soft X-ray emission map.
