Fig. 14
Download original image

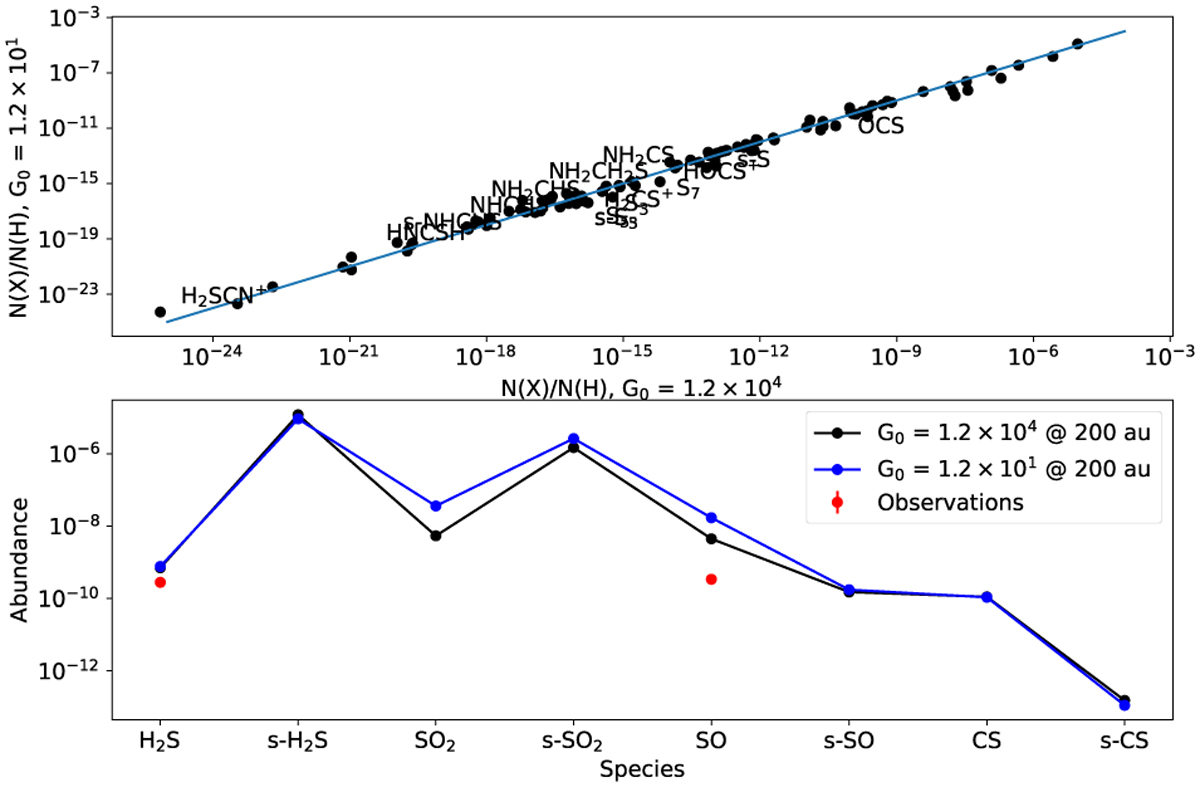

Impact of varying the UV flux on the model results. Top: the abundance of sulfuretted species computed assuming fUV=12 Draine unit versus the abundance computed assuming fUV = 1.2×104 Draine units. Bottom: the abundance of a subset of the most relevant sulfur carriers for the a model with fUV = 12 Draine unit and with fUV = 1.2×104 Draine units.
