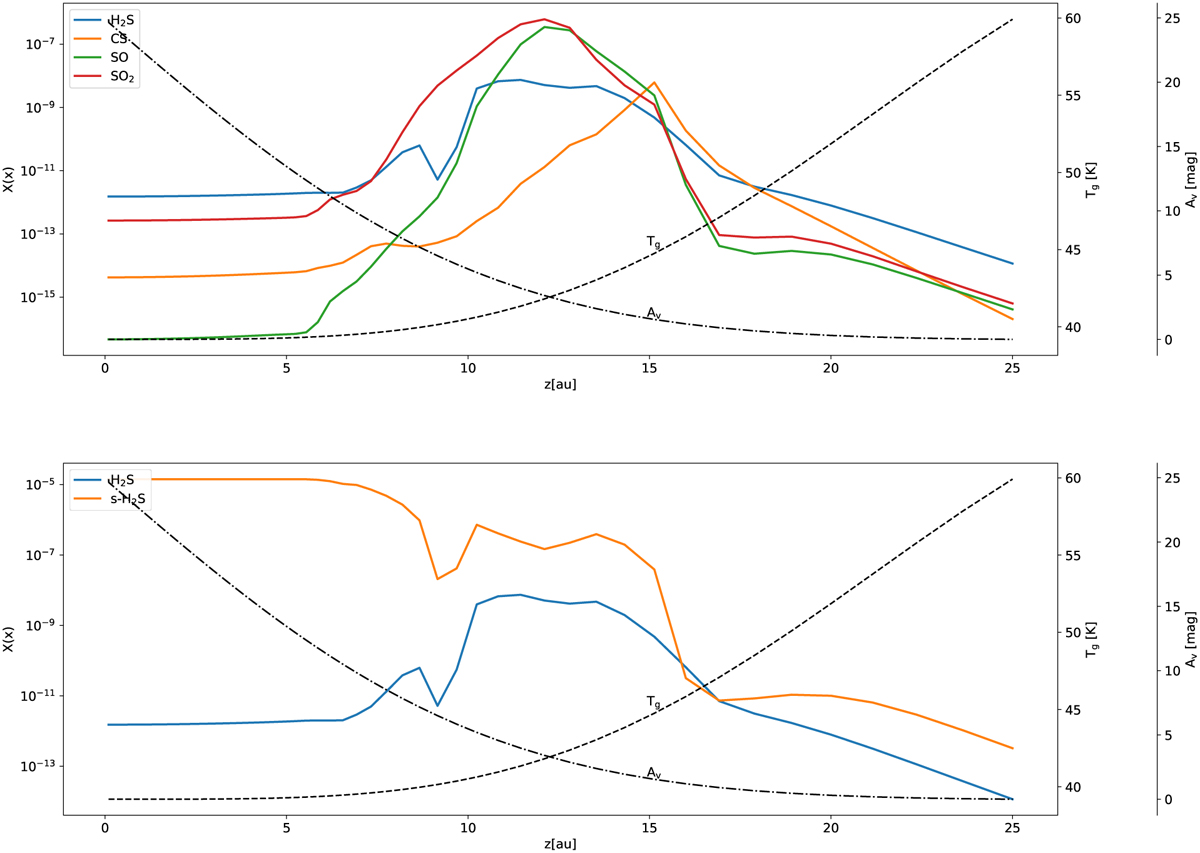

Vertical profiles at r = 200 au. Top: of important sulfur carriers in the gas phase, namely H2S, CS, SO, and SO2. Bottom: of H2S in the gas phase and in the surface of grains (g-).We also include the vertical profile of Av and Tg for comparison.
