Fig. 4.
Download original image

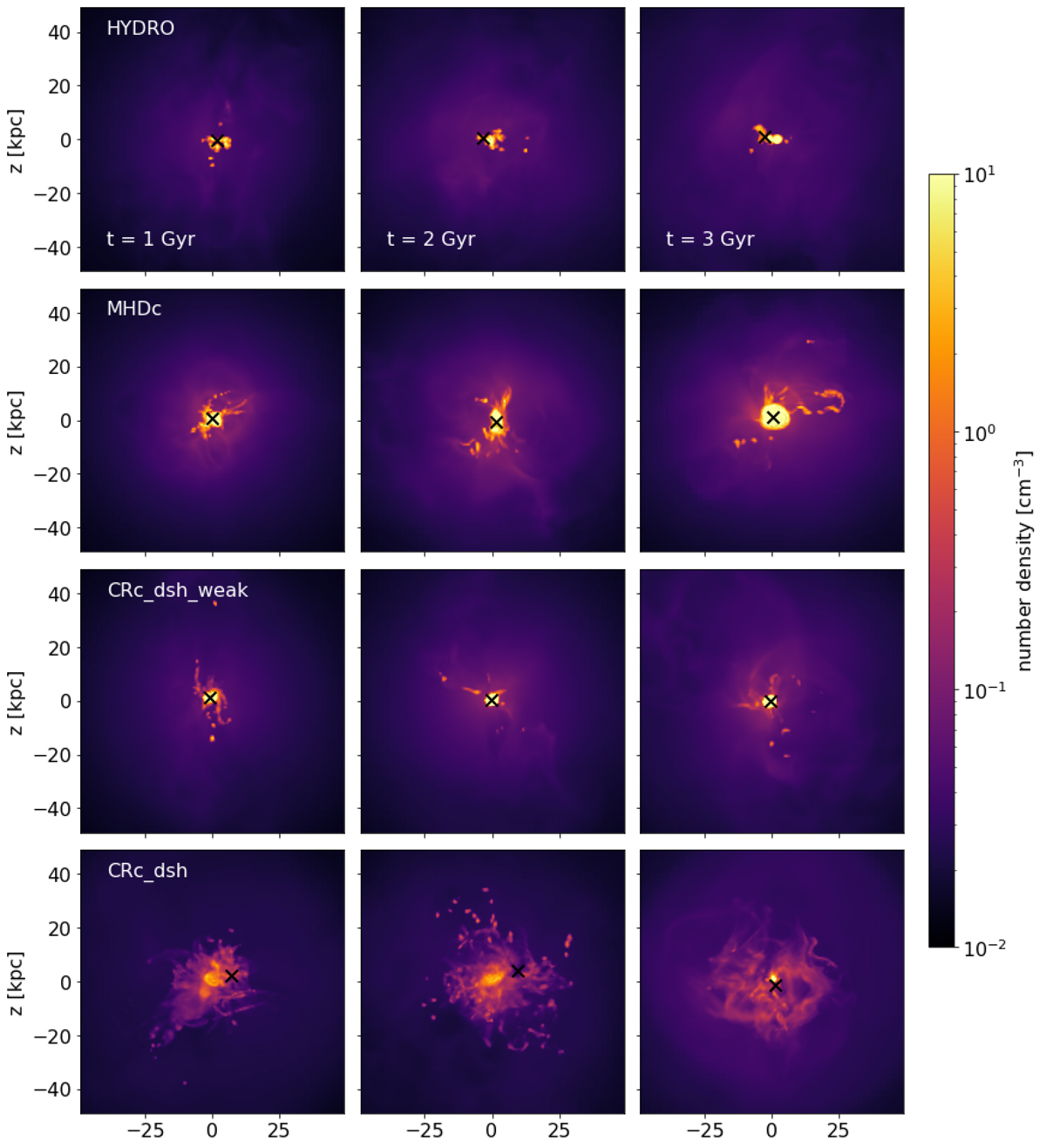

Projected gas density showing the multi-phase structure of the gas in the cluster centre for different physics (rows) and at three different times 1, 2, and 3 Gyr from left to right. The location of the BH is marked in black. The morphologies and the extent of the condensed gas depend strongly on the presence of magnetic fields and CRs.
