Fig. 3.
Download original image

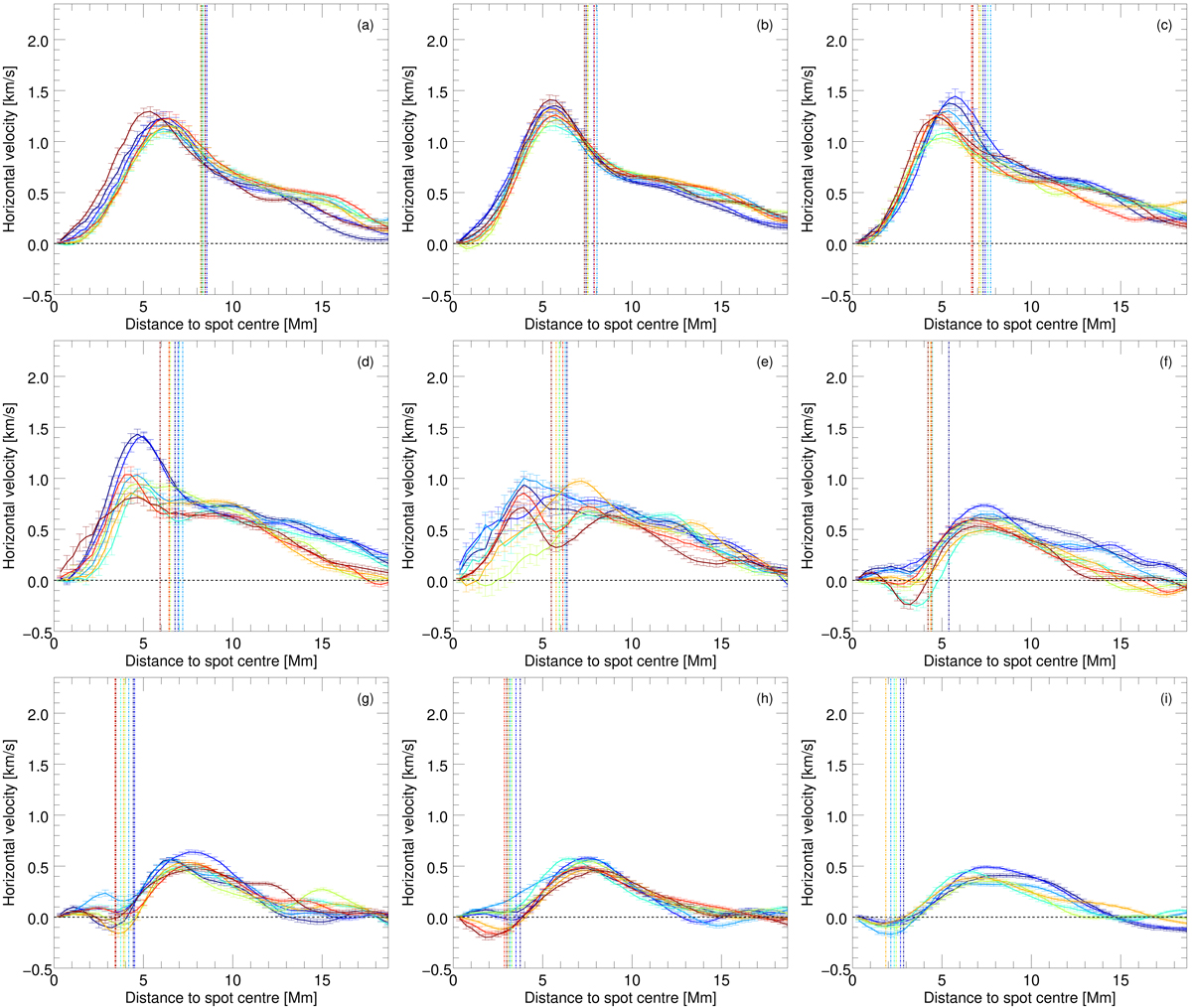

Same as Fig. 2, but for nine successive days (panels a–i) of AR11841, representative for Case (ii) of the evolution of the flow field. The penumbra has dissolved on the fourth day of the analysis at time step 5 (green profile in panel d). Error bars represent the standard deviation. Vertical lines display the position of the spot boundary.
