Fig. 12
Download original image

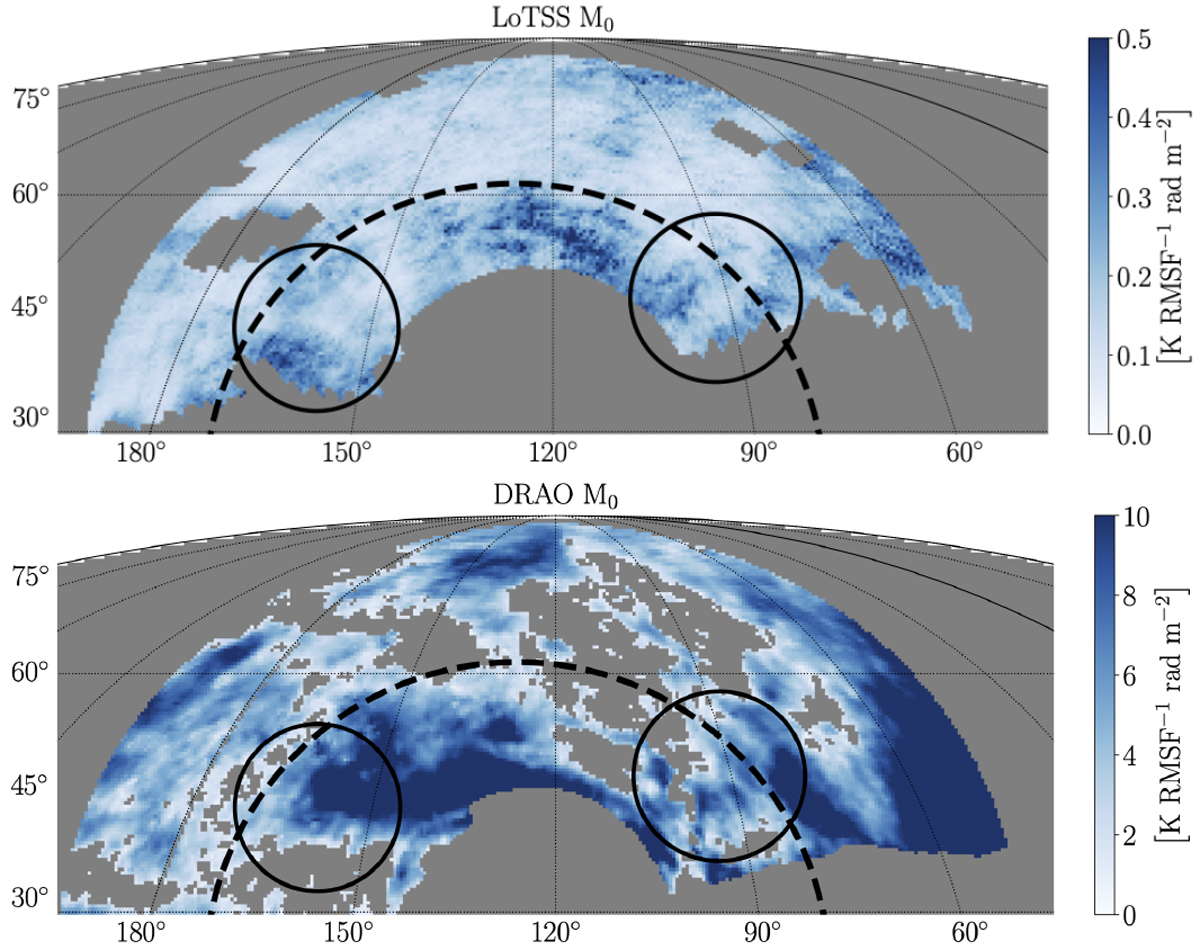

LoTSS and DRAO GMIMS zeroth moment images in Galactic coordinates with the same projection as in Fig. 8 and they have a resolution of 40 arcmin. Circles mark areas discussed in Sect. 5.1. The units for the LoTSS zeroth moment were converted to K RMSF−1 rad m−2 to simplify the comparison with DRAO GMIMS data. The intensity of 1 mJy PSF−1 RMSF−1 rad m−2 corresponds to −0.5 K RMSF−1 rad m−2.
