Fig. 5

Download original image

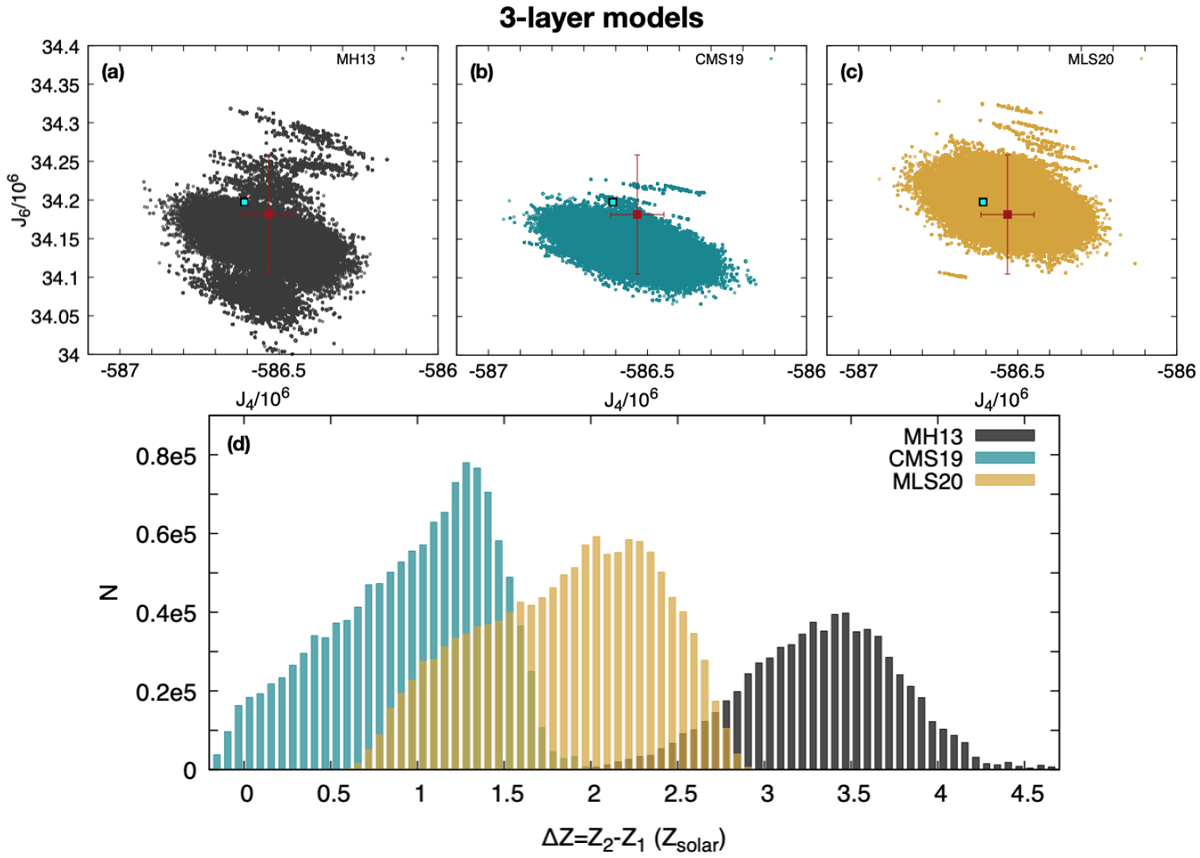

Details of models with three layers. Panels a, b, and c: J4 vs. J6 for three-layer models calculated using different equations of state for H, indicated in the figure. Cyan squares show the Juno measurements , and gravitational harmonics corrected by differential rotation - the ones to match with our interior models
- are shown in red. Panel d: histogram showing the difference in heavy elements (ΔZ = Z2 - Z1) between the Hmetallic- and H2-dominated layers.
