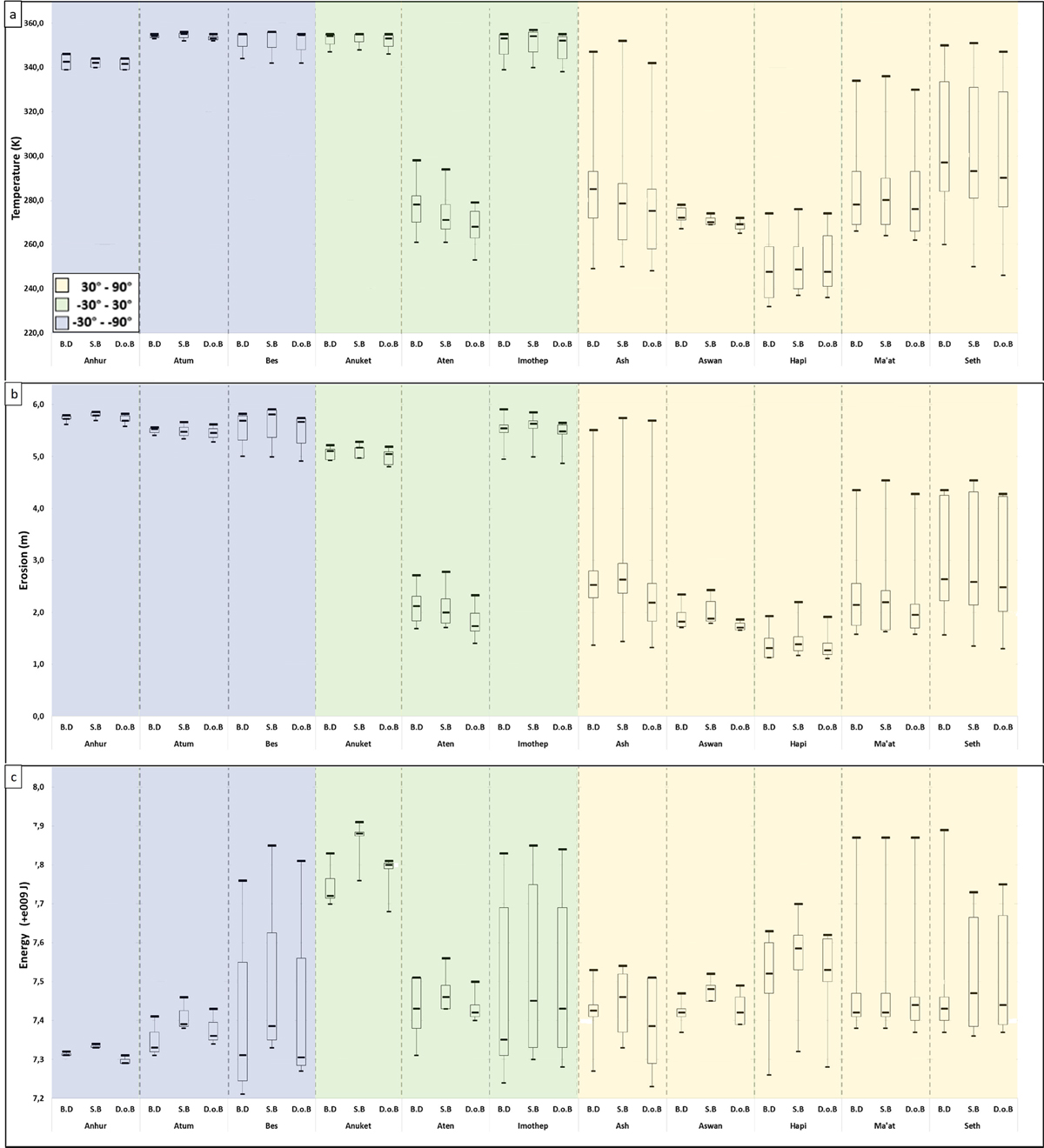

Fig. 13

Download original image
Box and whisker plot of the thermal parameters for the different regions of 67P and for the different part of each depression: BD for the bottom of the depression, SB for the slope break, and D.o.B for the outer border of the depression. (a) Temperature (K), (b) total erosion (m), and (c) total energy received from the Sun (109 J/m2). The background color is an indication of the latitude: [−90°; −30°] in blue, [−30°; +30°] in green, and [+30°; +90°] in yellow.
